1.5T Split-Top Head Coil Introduction
Product Identification and Shipping List
To identify the 1.5T Split-Top Head Coil, refer to the coil label shown in Figure 1.
Figure 1. 1.5T Split-Top Head Coil Label
Figure 2 shows the 1.5T Split-Top Head Coil.

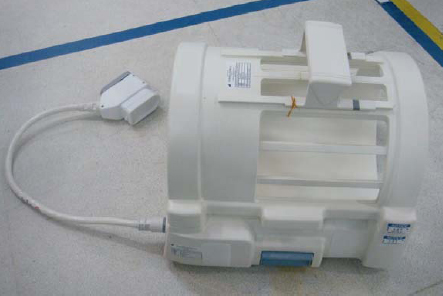

Figure 2. 1.5T Split-Top Head Coil
| Description | GE Part Number | Quantity |
| 1.5T Split Head Coil Assembly, HDv | 5182594 | 1 |
| Cushion Head - Split Head Coil, HDv | 5327302 | 1 |
| Head Coil Flat Cushion, HDv | 5327301 | 1 |
| Operator Manual, 1.5T HDv Split Head Coil | 5182594-299 | 1 |
| Kit Head Restraint Straps | 2352202 | 1 |
Related Documentation
Signa GE 1.5T Split-Top Head Coil HDv Operator Manual, Direction 5182594-299.
Environmental Requirements
Storage
This equipment must be stored under the following conditions:
-
Temperature range of -40° to 70° C (-40° to 158°F )
-
Relative humidity range of 40 to 95%, non-condensing
-
Atmospheric pressure range of 525 to 1,013 hPa
Dimensions (Excluding Cable)
424.3 mm (L) x 422.3 mm (W) x 366.1 mm (H)

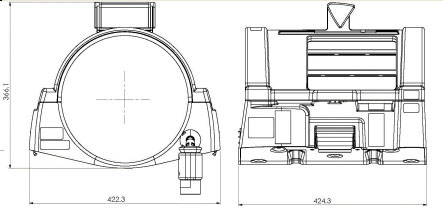

Figure 3. 1.5T Split-Top Head Coil Dimensions
Weight
12.1 lbs. (5.5 kg)
