1.5T Neurovascular Array Introduction

The information that follows is for the 1.5T Neurovascular Array Coil by Medrad, Catalog Number M3087JJ.

To identify the coil, refer to the coil label in Figure 1.

Figure 1. Coil label

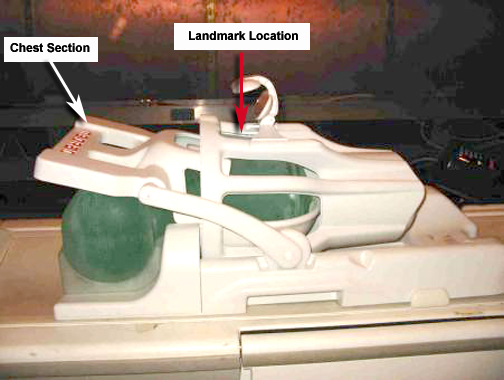

Figure 2. 1.5T Neurovascular Array Coil

Table 1 Shipping List
Description GE Part Number Medrad Part Number Quantity
1.5T HD Neurovascular Array Coil 5117092-2 3012936 1
Operator Manual 5117092-8 203105 1
Comfort Pad 5117092-4 3011253 1
Wedge Pad 5117092-5 3006431 2
Leg Comfort Pad 5117092-9 3011255 1
Phantom and Phantom Positioner Kit 5117092-6 3012931 1

Related Documentation

1.5T HD Neurovascular Array Operator’s Manual, Direction 5117092-8

Environmental Requirements

Storage

This equipment must be stored under the following conditions:

  • Ambient temperature range of +10°C to +40°C (50°F to 104°F)

  • Relative humidity range of 10% to 90%, noncondensing

  • Atmospheric pressure range of 500 hPA to 1060 hPa

To store the coil, a storage space of 45.7 cm/18.0 in. (width) x 72.4 cm/28.5 in. (depth) x 42.7 cm/16.8 in. (height) is required.

Dimensions

Coil Dimension: 724.0 mm x 457.0 mm x 427.0 mm 28.50 in. x 18.00 in. x 16.80 in.
Phantom: 609.6 mm x 114.3 mm x 114.3 mm 24.0 in x 4.5 in. x 4.5 in.
Phantom Positioner: 393.7 mm x 200.9 mm x 115.8 mm 15.5 in. x 7.91 in. x 4.56 in.

Weight

Coil Weight: 9.675 kg 21.5 lb.
Phantom: 6.975 kg 15.5 lb.
Phantom Positioner: 0.167 kg 0.37 lb.
