1.5T HD 8-Channel Neurovascular Array Introduction

The information that follows is for the 1.5T 8-Channel Neurovascular (NV) Array Coil by Invivo, Catalog Number M3335M.

To identify the coil, refer to the coil label.

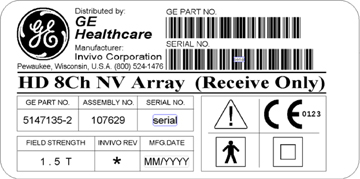

Figure 1. Coil Label

The 1.5T 8-Channel NV Array Coil is shown below.

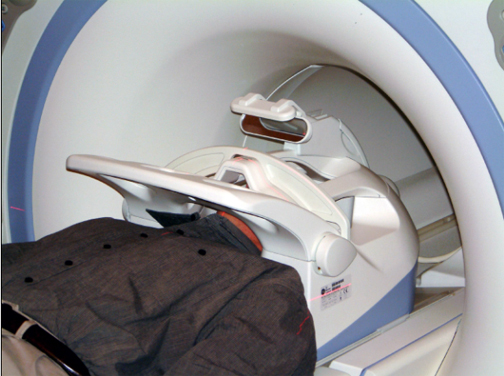

Figure 2. 1.5T 8-Channel NV Array Coil

Table 1 1.5T 8-Channel Neurovascular Array Shipping List
Description GE Part Number Invivo Part Number Quantity
1.5T 8-Channel Neurovascular Array Coil 5147135-2 107629 1
Operator Manual 5147135-4 500193 1
HNC Pad 2317115-6 102955 1
Wedge Pad 2317115-8 101407 2
Neurovascular Array Positioner 5344806 N/A 1

Environmental Requirements

Storage Requirements: To store the coil, a storage space of 45.7 cm (width) x 72.4 cm (depth) x 42.7 cm (height), 18.0 in. x 28.5 in. x 16.8 in. is required.

This equipment must be stored under the following conditions:

  • Ambient temperature range of +10°C to +40°C (50°F to 104°F)

  • Relative humidity range of 10% to 90%, noncondensing

  • Atmospheric pressure range of 500 hPa to 1060 hPa

Dimensions: 724.0 mm x 457.0 mm x 427.0 mm (28.50 in. x 18.00 in. x 16.80 in.)

Weight: 9.675 kg (21.5 lbs)
