1.5T Breast Array Coil Introduction

Overview

This document describes the 1.5T Breast Array Coil made by GE/USAI, Catalog Number M3087JG. To identify the 1.5T Breast Array Coil, refer to both illustrations below.

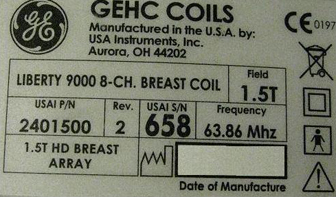

Figure 1. 1.5T Breast Array Coil Label

Figure 2. Coil with Headrest and Pads

Shipping Lists

Table 1 Shipping Contents - Box 1
Description Part Number Quantity
1.5T Breast Array 2401500 1
Headrest Assembly 2407945 1
Operator Manual 2411412 1
Lateral Biopsy Assembly 2408005 2
Table 2 Shipping Contents - Box 1 (cont.)
Description Part Number Quantity
Breast Chamber Cover 2414341 1
Plate, Lateral Compression 2414543 2
Plate, Medial Compression 2414544 2
Breast Positioner 5343432 1
Table 3 Shipping Contents - Box 2
Description Part Number Quantity
Patient Pad 2408500 1
Transition Pad 2408501 1
U-Shaped Headrest Pad 2408502 1
Armrest Pad 2408504 1
Footrest Pad 2412151 1
Breast Chamber Cover Pad 2408503 1
Table 4 *Shipping Content - Box 3
Description Part Number Quantity
Sterilized Lateral Biopsy Plate 2414346 2
Sterilized Medial Biopsy Plate 2414342 2
Biopsy Operator Manual 2418208 1
note:

*Only provided when the coil is ordered with the biopsy option.

Related Documentation

Operator Manual, GE P/N 2422019.

Biopsy Operator Manual, GE P/N 2418208

Environmental Requirements

Storage Requirements: Coil should be stored in the scanner room.

Dimensions: 521 mm (L) x 541 mm (W) x 244 mm (H)

Weight: 15.8 lbs (7.2 kg), excluding biopsy device
