1.5T 8-Channel Neurovascular Array Replacement

notice To be performed by authorized Service Engineer only.

See Coil Troubleshooting.

notice To be performed by authorized Service Engineer only.

The four coil connector mounting screws are located at the superior end of the coil. Remove these mounting screws as detailed in Figure 1. Remove the coil connector by pulling away from the coil in the superior direction.

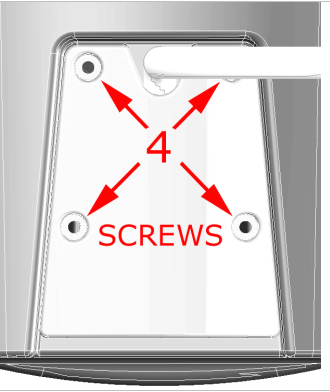

Figure 1. Remove Four Screws

Test the superior and right/left coil latches.

• Latches must move smoothly and lock securely in place.

• Latches must not loosen or open during the course of an examination.

Disassembly of Anterior Coil

Remove the anterior coil cover from the anterior coil section as follows:

1. Loosen, but do not remove, the 17 screws that fasten the anterior coil cover to the anterior coil section. (Fastener locations are detailed in Figure 2.)

   note:

   Screws numbered 5, 6, 10, 11 and 16 are longer than the other screws. (See Figure 2.)

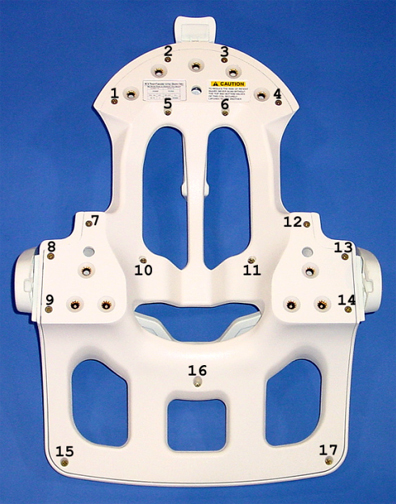

   Figure 2. Anterior Coil Fastener Locations



2. Carefully lift the anterior coil section away from the anterior coil cover.

3. Place the anterior coil section aside, being careful to keep the screws stored in their respective holes.

4. During FRU replacement and cover reinstallation, ensure that the electronics in the anterior coil section are not disturbed.

Replacement of Right/Left Latch

With the Anterior Coil disassembled, open the Right/Left Latch Assembly FRU package, and follow the assembly instructions below in the Media File.

Replacement of Superior Latch

1. Remove the four screws that fasten the superior latch assembly to the anterior coil cover. (The four fastener locations are shown in Figure 4.)

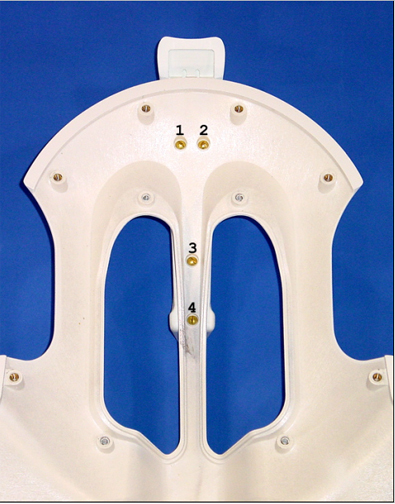

   Figure 4. Superior Latch Assembly Fastener Locations



2. Replace the superior latch using the Superior Latch Assembly shown in Figure 5.

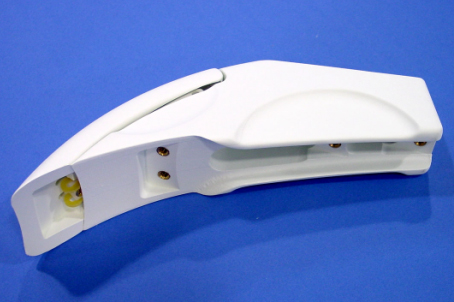

   Figure 5. Superior Latch
