1.5T 8-Channel High Res Brain Array Introduction
Product Identification and Shipping List
This document describes the 1.5T HD 8-Channel High Resolution
Brain Array made by Invivo, Catalog Number M3335LZ.
Figure 1. 1.5T HD 8-Channel High Res Brain Array Coil Serial Label

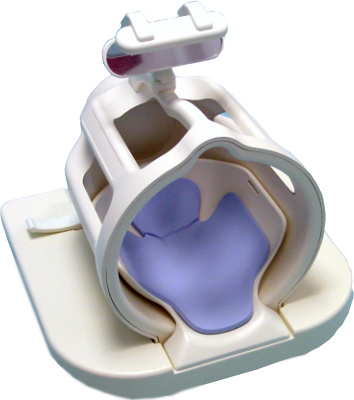

Figure 2. 1.5T 8-Channel High Resolution Brain Coil
| Description | GE Part # | Invivo # | Qty |
| 1.5T HD 8-Channel High Resolution Brain Array | 5146634-2 | 106446 | 1 |
| Phantom Positioner | 2317112-3 | 102558 | 1 |
| Operator Manual | 5146634-4 | 500192 | 1 |
| Thick Head Pad | 2317112-9 | 102985 | 1 |
| Thin Head Pad | 2317112-10 | 102984 | 1 |
| Spacer Pad | 2317112-7 | 101622 | 1 |
| Wedge Pad | 2317115-8 | 101407 | 2 |
Related Documentation
1.5T HD 8 Channel High Resolution Brain Array Operator’s Manual, 5146634-4
Environmental Requirements
Storage
This equipment must be stored under the following conditions:
-
Ambient temperature range of +10°C to +40°C (50°F to 104°F)
-
Relative humidity range of 10% to 90%, noncondensing
-
Atmospheric pressure range of 500 hPa to 1060 hPa
Dimensions
Dimensions
| Coil Dimension: | 417.6 mm x 393.4 mm x 406.4 mm | 16.44 in. x 15.49 in. x 16.00 in. |
| Phantom Positioner: | 225.6 mm x 228.6 mm x 23.9 mm | 8.88 in. x 9.00 in. x 0.94 in. |
Weight
| Coil Weight: | 7.20 kg | 16.0 lb. |
| Phantom Positioner: | 0.45 kg | 1.0 lb. |
