1.5T 8-Channel CTL Introduction
This document describes the 1.5T 8-Channel CTL Coil by GE, Catalog Number M3335MA.
Product Identification and Shipping List

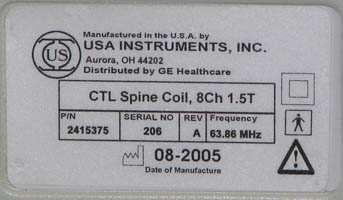

To identify the 8-Channel CTL Coil, refer to the coil label in Figure 1).
Figure 1. Coil label

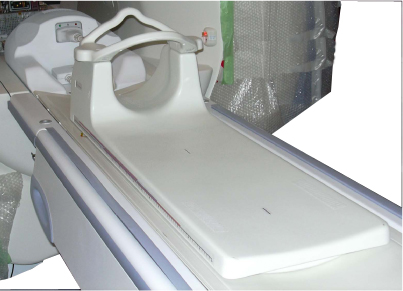

Figure 2 shows a picture of the 8-Channel CTL Coil.
Figure 2. 8-Channel CTL Coil
| Box # | Description | GE Part Number | USAI Part Number | Quantity |
| 1 | Coil with Coil ID Cable | 2415375 | 2415375 | 1 |
| 3 | Patient Comfort Pad Kit | 2377426-6 | 150500 | 1 |
| 1 | Adapter Block | 2225545-9 | 150038 | 1 |
| 1 | Operator Guide | 2415427 | 2415427 | 1 |
Related Documentation
Operator’s Guide, GE P/N 2415427
Environmental Requirements
Storage Requirements: Coil should be stored in the scanner room.
Dimensions: 43.3 in. (L) x 16.1 in. (W) x 13.6 in. (H), 110.0 cm x 41.0 cm x 34.5 cm
Weight: 20 lbs. (9.1 kg)
| Environmental Factor | Transport/Storage | Operating Conditions |
| Barometric Pressure | 872 hPa to 1060 hPa | As established by the GE recommended MR Suite conditions. |
| Humidity | 20% to 95% noncondensing | 45% to 75% noncondensing |
| Temperature | -15°C to 55°C (5°F to 131°F) | 15°C to 35°C (59°F to 95°F) |
