1.5T 8-Channel Body Array Coil Introduction
Overview
This document describes the 1.5T HD 8-Channel Body Array Coil, made by GE/USAI, Catalog Number M3335MC.
Product Identification and Shipping List

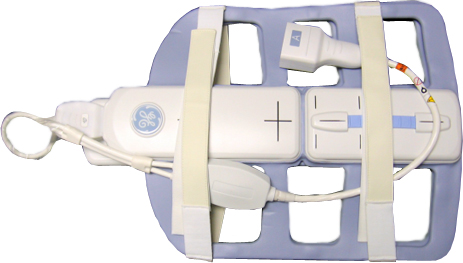

Figure 1. 8-Channel Body Array Coil
| Description | GE Part Number | USAI Part Number | Quantity |
| HD 8-Channel Body Array Coil | 2415366 | N/A | 1 |
| Body Pad Kit, 1.5T Coil (150448,150460,150510,150521) | 2377425-6 | U1-150479 | 1 |
| Multi-Lingual Label Set - Do Not Pull (English version applied to coil.) | 2409227 | N/A | 2 |
| Operator Manual Set (Multi-lingual) | 2415429 | N/A | 1 |
Related Documentation
GE Healthcare Signa 1.5T HD 8-CH Body Array Coil Operator Manual, Direction 2415429.
Environmental Requirements
Storage Requirements: Store the coil in an air-conditioned scan room or equipment room. To store the coil, a storage space of 60 cm x 80 cm x 10 cm is required.
| Environmental Factor | Transport/Storage | Operating Conditions |
| Barometric Pressure | 872 hPa to 1060 hPa | As established by the GE recommended MR suite conditions. |
| Humidity | 20% to 95% noncondensing | 45% to 75% noncondensing |
| Temperature | -15°C to 55°C (5°F to 131°F) | 15°C to 35°C (59°F to 95°F) |
Dimensions:
-
Anterior: 21.0 in. (L) x 27.9 in. (W), 53.5 cm x 71.1 cm
-
Posterior: 21.0 in. (L) x 30.5 in (W), 53.5 cm x 77.4 cm
Weight:
-
Anterior: 4.4 lbs (2.0 kg)
-
Posterior: 8.4 lbs (3.8 kg)
