1.5T 3-Channel Shoulder Coil FRUs and Cable Replacement

1.5T 3-Channel Shoulder Coil FRUs

Table 1 1.5T 3-Channel Shoulder Coil FRUs
Item Description GE Part Number
1 FRU Coil, 1.5T Shoulder 5498927
2 FRU, 1.5T Kizuna Shoulder Cable 5015498
3 Shoulder Coil Phantom Positioner 2375136-3
4 Shoulder Coil Patient Comfort Pad 2375136-5
5 FRU, Spacer pad, Shoulder 2413827
6 Strap and Pin FRU, Shoulder Coil 5370109
7 Shoulder Coil Vinyl Repair Kit 5440960

Shoulder Cable Replacement

Follow this procedure to replace the system cable on the Shoulder Coil. Before beginning this procedure, remove the coil from the magnet room. Wear an ESD wrist strap to avoid electrostatic discharge.

Personnel Requirements

Required Persons Procedure Timing
1 45 minutes

Preliminary Requirements

Tools and Test Equipment

Item Qty
Standard Tool Set (P/N 5112581) 1
ESD Wrist Strap 1

Parts

Item FRU Part Number Qty
1.5T Shoulder Coil System Cable See FRU List 1

Procedure

  1. Remove the nine screws holding the cover on the unit.

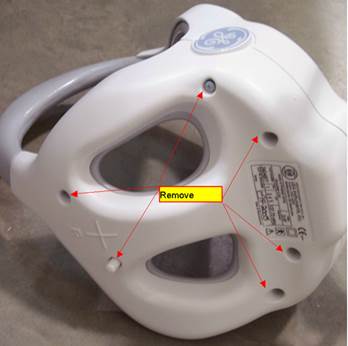

    Figure 1. Remove 9 Screws

  2. Disconnect the RF cables and the DC wires from the feed boards.

    Figure 2. Disconnect RF Cables

  3. Remove two screws on the clamp of strain relief.

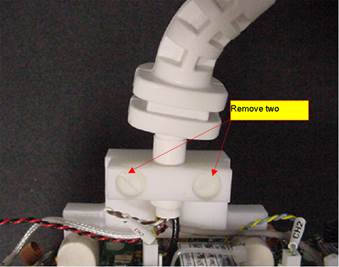

    Figure 3. Remove 2 Screws on Clamp of Strain Relief

  4. Remove the cable from the coil.

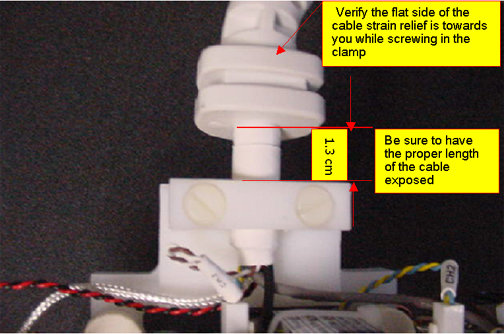

    Figure 4. Cable with Cable Clamp to Coil

  5. Install New Cable in Coil. Attach the cable with the cable clamp to the coil.

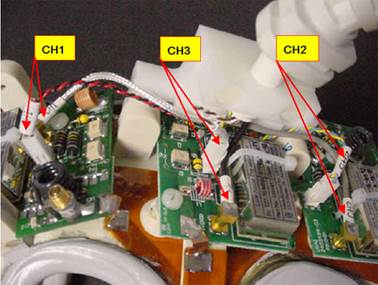

  6. Connect the DC wires and RF cables

    Table 2 Connection
    RF Wires
    Color Label
    Black CH3
    Gray CH2
    Silver CH1
    DC Wires
    Blue and Yellow (Twisted) CH2
    Red and Black (Twisted) CH1
    Brown and White (Twisted) CH3

Finalization

Run the MCQA Tool to verify the Shoulder Coil operates properly.
