Importing and exporting TLS certificates

A certificate or digital certificate is a unique, digitally signed document that identifies the identity of an individual or organization. Using public key cryptography, its authenticity can be verified to make sure the software or website you are using is legitimate.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-45 to 65 minutes5 minutes
Tools and test equipment
ItemQuantityPart numberManufacturer
USB Flash Drive1--
Required conditions
The certificate must be installed on the USB flash drive prior to starting the procedure.
Safety

Before working in any GE Healthcare MR suite or performing any GE Healthcare service procedure, you must:

  • Have read and understood all hazard conditions and safety requirements in the latest revision of the GE Healthcare MR Service Safety Manual (5452735).
  • Have successfully completed all relevant GE Healthcare Environmental Health and Safety (EHS) courses (or for non-GE employees, equivalent workplace training courses).
  • Comply with all site-specific training and workplace safety requirements.

If you have any safety concerns at any time, do not begin work or immediately stop work and move to a safe location. Immediately contact your supervisor or site safety officer for instructions on how to proceed.

About this task

Software version and later introduces Certificate Management through TLS encryption for DICOM, EA3 and EAT features on the MR system.

Certificate specifications as required by the MR software

About this task

Certificates generated by the customer IT team for use on the MR system must comply with the following:
  • Certificates can be self-signed or CA Authorized
  • The MR scanner only accepts certificate files with extension .pem
  • The following attributes within the certificate are mandatory:
    • Common name (for example, server FQDN)
    • Organization name
    • Organizational unit name
    • Locality name (city/locality)
    • State or province name (state/province)
    • Country name (country/region)
  • Bit length. 2048 is the current industry standard
  • Self-signed certificates complying with the above rules can be generated on the MR scanner itself; however, this is the least preferred and not a recommended method for accomplishing certificate management. For information on self-signed certificates, see Generating self-signed certificates.
Note: Consult with customer IT to determine which of the below setups is applicable for their system.

MR Scanner set up as secure client

About this task

When the MR Scanner is set up as a secure client through Transfer Layer Security (TLS), it can only send encrypted data (EAT, EA3, or DICOM as configured) to a server. The MR Scanner itself cannot receive any encrypted information from the server. Therefore, if the MR Scanner is set up as a client and either the customer or service personnel is trying to send data (EAT, EA3, or DICOM as configured) from the server to the MR Scanner, this transfer will not go through. To avoid a transfer failure, follow this procedure.

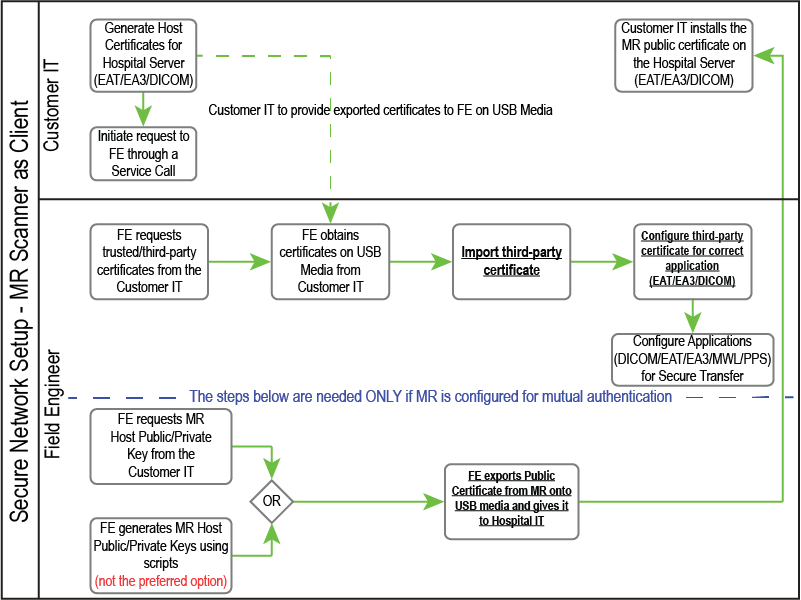

Figure 1. MR Scanner set up as secure client flowchart
Note: Underlined text in the flowchart below indicates links to additional content.
Importing third-party certificatesConfiguring certificatesExporting private keys for a third-party client

MR Scanner set up as secure server

About this task

When the MR Scanner is set up as a secure server, it can send/receive encrypted data (EAT, EA3, or DICOM as configured) to/from a server.

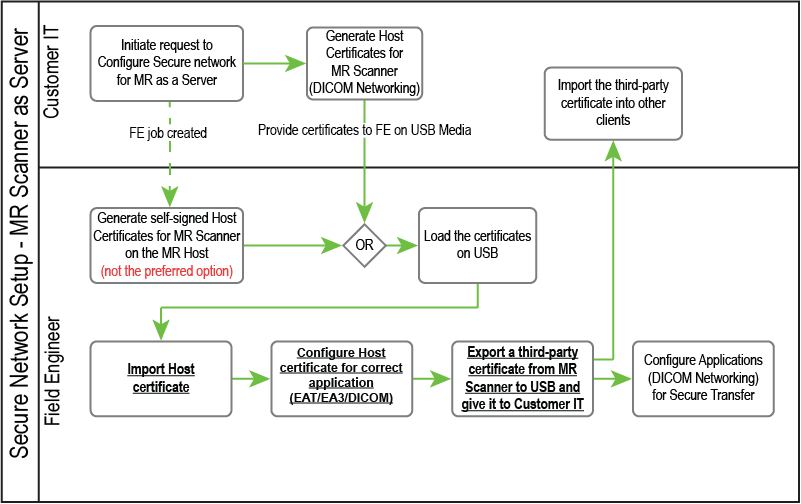

Figure 2. MR Scanner set up as secure server flowchart
Note: Underlined text in the flowchart below indicates links to additional content.
Importing host certificatesConfiguring certificates to the services on the MR systemExporting private keys for a third-party client
Note: Certificate import/export alone does not configure secure networking on the MR scanner. Individual applications must be configured to use the certificates. For detailed information on configuration, see the following:
