Generating self-signed certificates

Generate a self-signed certificate on the MR scanner.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-

About this task

This is the least-preferred option. You should always use certificates provided by the customer, because self-signed certificates are not as secure as the CA signed certificates that customers can provide. Use this only as a last-resort solution.

Procedure

  1. Click C Shell... on the Service Desktop manager.
    Note: The Shell window can only be launched when the EA3 user is included in the authorized EA3 group. Users not in this EA3 group will not have access to launch the Shell window. If you are not logged in as the proper logon user, log out and then log back on as the correct EA3 user with the authorized permissions.
  2. Log in as a root user. If you do not log in as a root user, the certificate will not be configured correctly.
    1. Type su - and press Enter.
    2. Type the root password and press Enter.
  3. Execute the following command: cd /export/home/
  4. Execute the following command: sh /export/home/sdc/nuevo/scripts/util/generateCertificate --disable-enc
  5. Provide the relevant information requested.

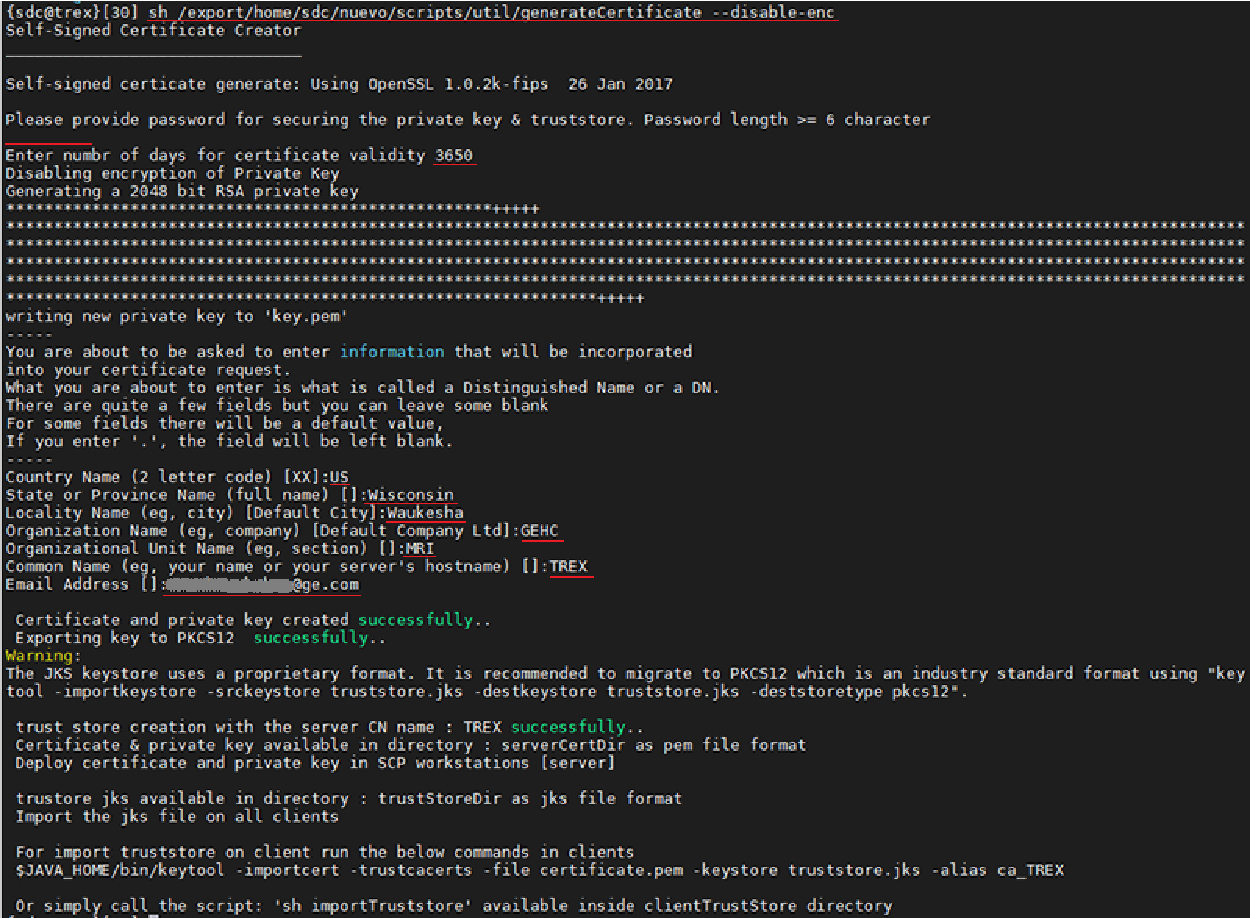

    Figure 1. Certificate information
    Length of certificate validity (in number of days)
    Country (two-letter code)
    State/province
    Locality (city)
    Organization (company)
    Organizational unit (section)
    Common name (your name or server name)
    Email address (optional)
  6. To log out as root user, execute the following command: exit
  7. Plug the USB drive into the Global Operating Cabinet (GOC).
  8. Execute the following command: nautilus&
  9. Go to /export/home/serverCerts/ and move both the key.pem and certificate.pem to the USB drive. The key.pem file has the host key and the certificate.pem file has the host certificate. Both should be imported and configured in host (server).
    Note: Some files can be created in a folder only accessible while logged on as root user.
  10. Refer to the Common Field Service Tasks procedure to transfer this file onto a USB in order to install these certificates on this host system.
  11. Import the host key and host certificate to the server using the TLS utility. See Importing host certificates - private keys.
  12. After the host (server) certificate is imported and configured in the TLS utility, you must export this certificate from the server using the download function and import it in the client as a third- party certificate. See Exporting private keys for a third-party client.
