(18BW26.x and 20BW25.x) Load From Cold

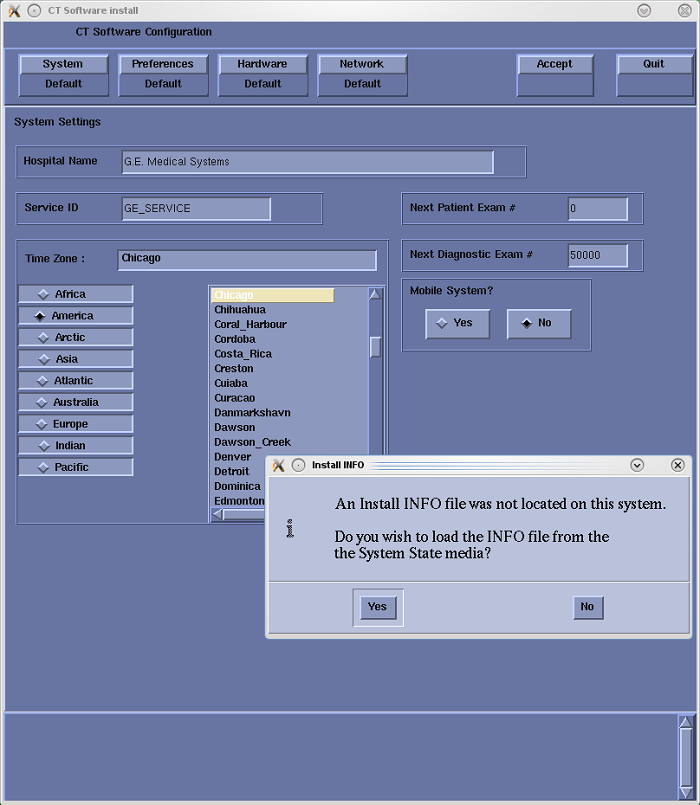

Select Yes.

Figure 6. Install INFO Window

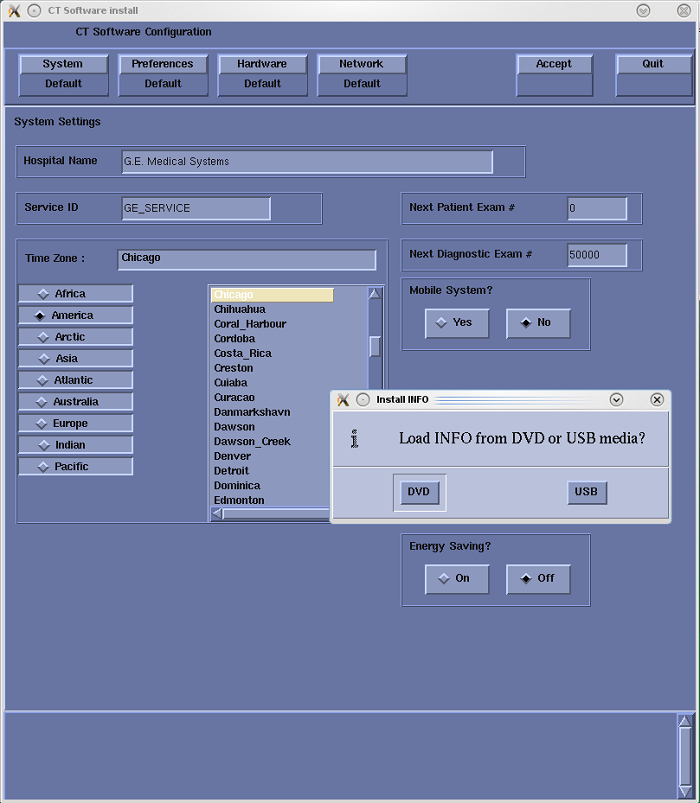

Select DVD or USB based on media type available.

Figure 7. Select DVD or USB

Select OK.

Select Accept.

Figure 8. Install INFO - Accept Window

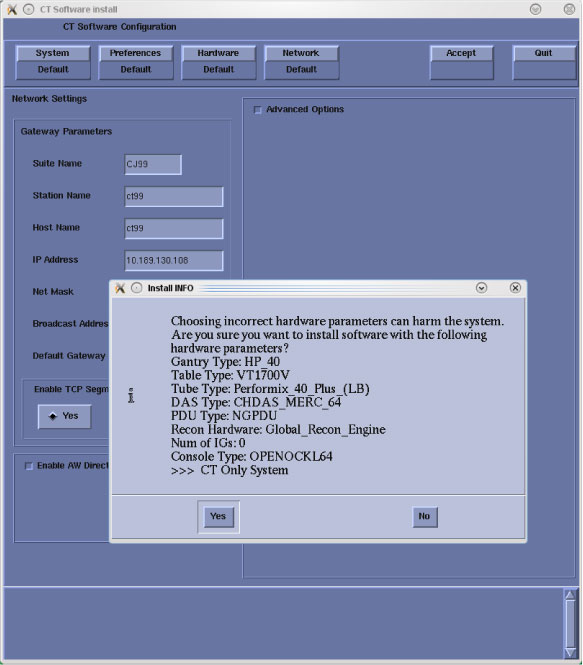

Select Yes.

Figure 9. Install INFO - Confirm Window

Figure 10. CT Software Auto-Start Disabled Pop-Up Windows

Click OK to close window.

Select Execute, the Set Date and Time Utility will open in a shell window.

Follow on screen instructions for setting the correct date and time.

Upon completion of the Set Date and Time Utility, close the shell window to return to the LFC Menu.

Selecting this item performs install of Advanced Service Software. (Not required for System operation.) Skip step if not applicable.

Selecting this item performs install of Advanced Service Software. (Not required for System operation.) Skip step if not applicable.

Insert the System State Media in either the DVD-RAM Drive of USB Port depending on media chosen earlier in this procedure, then select Execute.

A shell window will open and the System Stated will be restored. Several pop-ups will appear requesting configurations settings based on Options being restored. Select appropriate settings for the Options.

Upon completion of the Restore System State, a pop-up will appear reminding that a reboot will be required. Click OK, but do not reboot at this time. Close the shell window to return to the LFC Menu.

Then select Execute, the LFC Menu will check that the minimum procedural steps required for a LFC have been completed.

A pop-up window will appear confirming LFC Status.

Click Yes if satisfied that all necessary LFC Menu selections have been completed.

In the Terminal Windows used to launch the LFC Menu, type:

[root@hostname] reboot ENTER.

Allow the System to come up fully into Application Mode. If the CT Applications fail to start automatically, open a Terminal Window and type:

[ctuer@hostname]st [ENTER]

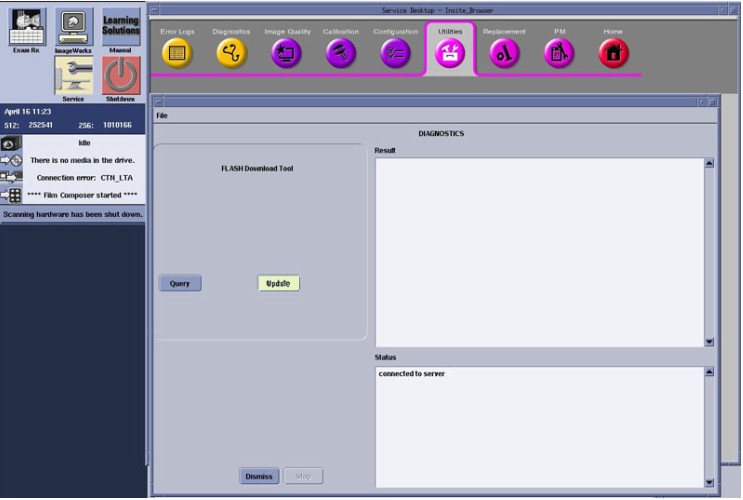

Select Update.

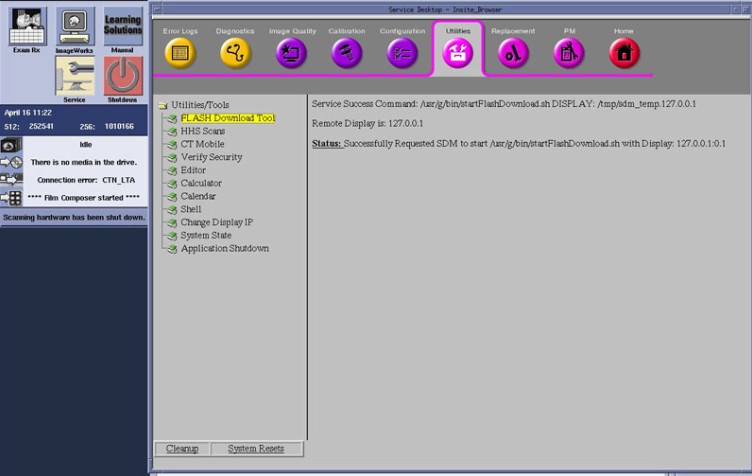

Figure 13. Flash Download Window

1. Open a Terminal window.
2. Type: {ctuser@hostname} swokinstall -p[ENTER]
3. Confirm that "Dynamic Transition" option is included in the option list.
4. Type: {ctuser@hostname} cat /usr/g/config/examRxDisplayMgr.init | grep TRIGGER=1 [ENTER]
5. Confirm if "ENABLE_SMART_PREP_AUTO_TRIGGER=1"is included at the output text.

   If any output displayed by this command, it means Dynamic Transition option is already installed correctly on the system.

   (Example)

   {ctuser@tc13bay}cat /usr/g/config/examRxDisplayMgr.init | grep TRIGGER=1
   ENVIRON="CUPIPCREUSEADDR= INIT_INTERVAL_FOR_RD=60000 INIT_INTERVAL_FOR_SNS=60000
           SWITCH_LAYOUT_INTERVAL_FOR_RD=150000 INIT_INTERVAL_FOR_AF=60000
           SWITCH_LAYOUT_INTERVAL_FOR_AF=60000 INIT_INTERVAL_FOR_AV=60000
           SWITCH_LAYOUT_INTERVAL_FOR_AV=60000 IMAGEAVAILSYNC IMAGEAVAILTIMEOUT=200 AFPRIORITY=10
           USESCHEDULER=1 NEXTPRIOR_IMAGE_LIMIT=200 NEXTPRIOR_IMAGE_BUFFER_COUNT=20
           NEXTPRIOR_SKIP_COUNT=3
           LD_LIBRARYN32_PATH=/usr/g/ctuser/display/arch/irix65/lib:/usr/g/ctuser/display/lib32:/usr/g/ctuser/lib32:/usr/lib32:/lib32:/usr/g/informix/lib:/usr/g/informix/lib/esql:/usr/g/ctuser/visibroker/vbc/lib:/usr/g/ctuser/gvtk/arch/irix65/lib
           LD_LIBRARY_PATH=/usr/g/ctuser/display/arch/linux24-gcc3/lib:/usr/g/ctuser/display/arch/linux24/lib:/usr/g/ctuser/display/lib32:/usr/g/ctuser/lib32:/usr/lib32:/lib32:/usr/g/informix/lib:/usr/g/informix/lib/esql:/usr/g/ctuser/visibroker/vbc/lib:/usr/g/ctuser/gvtk/arch/linux24-gcc3/lib:/usr/g/ctuser/gvtk/arch/linux24/lib:/usr/X11R6/lib
           GRAPHICRX_DEBUG=1 INIT_INTERVAL_FOR_GRX=60000 AF_VIEWER_OVERRIDE_HAST=1
           AF_VIEWER_FILM_RESPONSE_TIME_INT=6000 REALTIME_TIMEOUT=30000
           DBX_COMMAND_FILE=/usr/g/ctuser/display/config/display-traceback-gdb.cmd
           SDC_SELECTION_FILE=/usr/tmp/exam_rx_selection
           ENABLE_SMART_PREP_AUTO_TRIGGER=1"
   {ctuser@tc13bay}

1. Discuss ConnectPro / Exam Split Configuration with the Customer. The settings must be either A or D (from Table below). Settings B or C are NOT allowed and system CANNOT be configured that way.
2. Launch System State (or System State – USB) from CSD and select [Reconfig Info], then perform Save System State.
3. Launch Install Options from CSD and uninstall “Dynamic Transition” option key.
4. Reboot the system.
5. Launch System State (or System State – USB) from CSD and select [Reconfig Info], then perform Restore System State from System State media.
6. Option restoration process will be started. Select the correct PPS and Exam Split settings when asked.
   note: If Exam Split option was not previously installed, option restoration process for Exam Split will not run. Re-install Exam Split option manually by DVD or eLicense after Restore System state is completed.
7. Verify that the Dynamic Transition software option is correctly restored per the following steps:
   • Open a Unix shell.
   • Type: {ctuser@hostname} cat /usr/g/config/examRxDisplayMgr.init | grep TRIGGER=1 [ENTER]
   • Confirm that “ENABLE_SMART_PREP_AUTO_TRIGGER=1” is displayed at the end of output.
8. Perform Save System State (select [All] button).
9. Save the System State Backup media in a safe and secure location for future service activity
