DIG Replacement
Prerequisites
Overview
This procedure describes and illustrates the steps necessary to replace the Data Acquisition & Image Generation Computer (DIG).

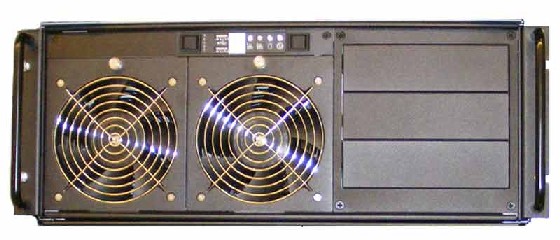

Figure 1. Data Acquisition & Image Generation Computer (DIG)

1 Power-Off (Shut Down) the Console
Procedure
- Select one of the following methods to power off the Operator
Console:
-
If applications are running, click the Shut Down icon and select Shut Down.
-
If applications are down, open a Unix Shell using the Toolchest. Type: {ctuser@hostname} halt. Press Enter.
The Operator Console monitor will display a System Halted message when it is acceptable to power off the Operator Console.
-
- Power OFF the Operator Console at the front panel switch (Figure 2).
Figure 2. Console Power Switch

- Perform prescribed Lockout/Tagout procedure. For added protection, disconnect the Twist-N-Lock Main Power Cable from the rear of the console.
2 Remove DIG Computer
Procedure
- Remove the front and rear Operator Console Covers per prescribed cover removal procedure.
- Remove the cable connections at the rear of the DIG Computer
chassis being replaced.note:
Verify that all cables are labeled and clearly marked. If necessary, add a label for clarity
- Remove the power cord at the rear of the DIG Computer chassis.
- Remove the four (4) 5mm socket cap screws and washers from the
front of the DIG Computer chassis, holding the chassis to the Operator
Console rack.
Figure 3. DIG Computer Mounting

- Slide the DIG Computer chassis forward (out the front of console)
and set aside.
Refer to Equipment Service - Console.
3 Install Replacement DIG Computer
Procedure
- Slide the replacement DIG Computer into the Operator Console from the front.
- Replace the four (4) 5mm socket cap screws and washers to secure the DIG Computer chassis to the Operator Console rack. Torque to 4.6 N-m.
- Mount the power cord to the rear of the DIG Computer chassis and verify that its power supply switch is turned to the ON position.
- Replace the rear cable connection(s).
Figure 4. HDIG Cable Connections & Destination

Figure 5. VDIG Cable Connections & Destination

For cabling details, refer to the appropriate interconnect located in the System Diagrams folder of this service methods publication.
4 Power-On the Operator Console
Procedure
- Reconnect the Twist-N-Lock Main Power Cable from rear of console and remove Lockout Tagout protection applied earlier.
- Power ON the Operator Console at the console front panel switch.
- Do not allow Applications to start. During boot-up, cancel Application Startup when the CT Software Auto-start pop-up window appears.
5 Verify Replacement DIG Computer Operation
Procedure
- Verify that the DIG Computer has powered up and is not displaying
or sounding any POST Errors.note:
See DIG Troubleshooting procedure if any errors appear.
- In order to assure proper operation of the DIG computer it is
necessary to perform System Configuration.
- Do not allow Applications to start. During boot-up, cancel Application Startup when the CT Software Auto-start pop-up window appears.
- Open a Terminal window and log on as Root.
- Type: reconfigEnter
note:No changes are required in the System, Preferences, Hardware, Network settings. The procedure just needs to be executed in order for the automated scripts to run. During the reconfiguration process the DHCP Server running on the Host Computer is reconfigured to support the new DIG Computer Ethernet MAC addresses.
note:Until the System Configuration procedure is performed, the Linux OS bootup text will display an error message when the DIG computer attempts to mount its NFS on the Host Computer. Ignore the error message.
6 Finalization
Procedure
- After completing the System Configuration procedure, perform a complete shutdown of the Operator Console and restart the system.
- Refer to System Scanning Test to confirm proper operation.
- Reinstall Console Front and Rear Covers.
