Troubleshooting Touch-and-Go (TnG)
Touch-and-Go (TnG) provides landmarking push buttons on each side of the patient table.

| Notice | |
|---|---|
Theory of operation
Along the sides of the table, there are three electrically resistive strips in series per side. These strips are contained in the TnG assemblies, which consist of the resistive strips and brackets that hold them in place.
| Description | Quantity |
| LH TnG Assembly | 1 |
| RH TnG Assembly | 1 |
When a TnG button is pressed, the location on the resistive strip is read by the SRI4 using a voltage divider circuit based on the resistive value of the button. The SRI4 then converts this voltage to a digital signal using an A/D converter. There is a delta constant between the alignment light and the first TnG strip. This constant, along with the TnG button signal, is added to the value from the DQA calibration to get the correct advance to scan value.
Troubleshooting
Testing Touch-and-Go (TnG)
- Bring the cradle to the home position.
- Select the Patient Setup tab on the IRD.

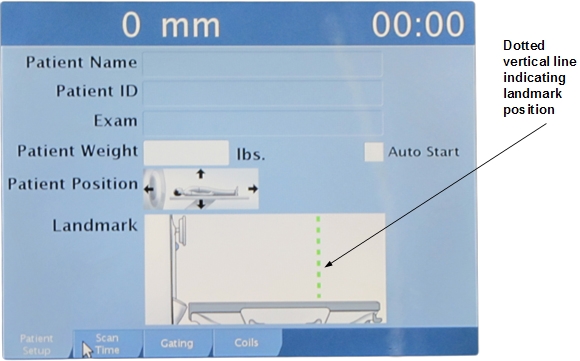

- Press a TnG button, and verify that a dotted vertical line appears at the approximate position where you pressed the button.
- Press and hold the Advance to Scan button (on the operator panel) until the cradle moves into the bore approximately 18 inches. (The amount of time that you need to hold the button depends on which TnG button you pressed.)
- Release the Advance to Scan button. The cradle should continue moving into the bore until it is at the landmarked position.
Touch-and-Go (TnG) diagnostics

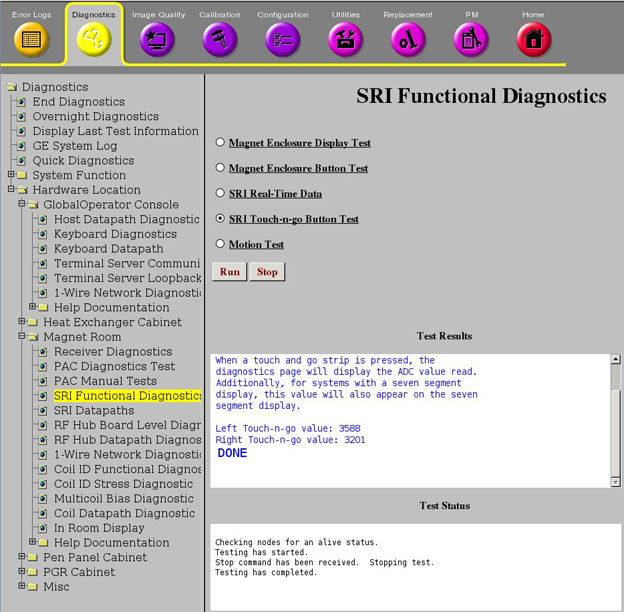

The TnG Diagnostic is found on the SRI functional diagnostic menu.
When a TnG strip is pressed, the diagnostics page displays the ADC value read.

The following table shows an example of the ADC values you may see during the diagnostic.
| Right TnG value: 776 | This value is TnG button pressed near FRONT of table, and value is read again when button is released. |
| Right TnG value: 3196 | |
| Left TnG value: 1214 | This value is TnG button pressed near MIDDLE of table, and value is read again when button is released. |
| Left TnG value: 3187 |
The ADC value should return to its original value when the button is released. In the example above, the left TnG value should return to 3187, and the right TnG value should return to 3196.
Touch-and-Go (TnG) measurements

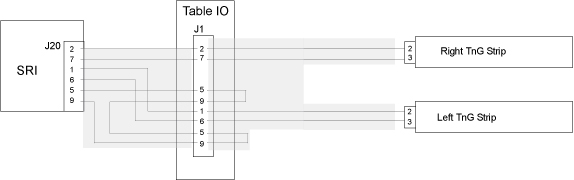

The following illustration shows a block diagram for TnG.

| Pin | Direction | Signal Name | Description |
|---|---|---|---|
| 1 | Input | LNDMRK_LEFT | Table left side landmark |
| 2 | Input | LNDMRK_RIGHT | Table right side landmark |
| 3 | NC | No connect | |
| 4 | Output | GND | GND |
| 5 | Output | GND | GND for landmark cable detect |
| 6 | Input | LNDMRK_LEFT_RTN | Table left side landmark return |
| 7 | Input | LNDMRK_RIGHT_RTN | Table right side landmark return |
| 8 | NC | No connect | |
| 9 | Input | LNDMRK_CBL_PRES_N | Landmark cable detect |
Isolating TnG strip signals
See TnG Switch Replacement for information about removing the TnG assemblies.
The following illustration shows a schematic of the TnG strips.
With a jumper wire connected to pins #1 & #2 of the female connector on TnG Strip, use an ohmmeter connected to the male connector to verify that the resistance.
| Switch Pressed | Resistance* |
| NO TnG Button(s) pressed | 6.2K Ω |
| 1 | 300Ω |
| 2 | 300Ω |
| 3 | 315Ω |
| 4 | 315Ω |
| 5 | 330Ω |
| 6 | 330Ω |
| 9 | 360Ω |
| 10 | 360Ω |
| 29 | 510Ω |
| 30 | 510Ω |
| 49 | 660Ω |
| 50 | 660Ω |
| 69 | 810Ω |
| 70 | 810Ω |
| 89 | 960Ω |
| 90 | 960Ω |
| 109 | 1.1K Ω |
| 110 | 1.1K Ω |
| *Values are approximate. Use only as a reference. | |
