ICW coil data path diagnostic


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	2 hours	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
MCRv tool	1	5182417-5	-

Table 1. Safety

CAUTION

Possible component damage

The TDI Posterior Array (PA) coil can be damaged by static electricity if the wrist strap is not worn.

Before performing any action on the TDI PA coil, wear the wrist strap. Refer to Wrist Strap Connecting Point for more information.


Required conditions
TDI posterior DMS array coil is installed.
Cradle top cover is removed.
System Power is on.

From ICW > Coil Datapath Diagnostic, invoke coil datapath diagnostic.
Perform the coil datapath diagnostic for each coil connector (P1, P2, P4, PE) on the cradle to check the signal paths between the coil connectors and the coil inputs to the DPP are ok.

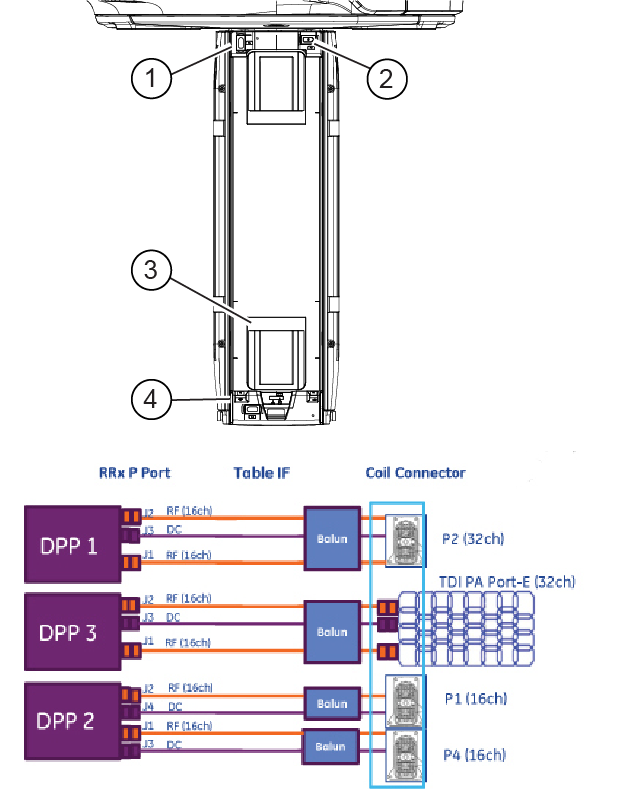

Figure 1. Coil connector (P1, P2, P4, PE)
1 P1 (16Ch)
2 P2 (32Ch)
3 TDI PA Port-E (32Ch)
4 P4 (16Ch)
After the test is completed, restore top cradle top cover. Refer to Installing the dockable table cradle hardtop cover.
