Replacement of PAC (Mobile Site)

Prerequisites

The PAC is located on the wall.

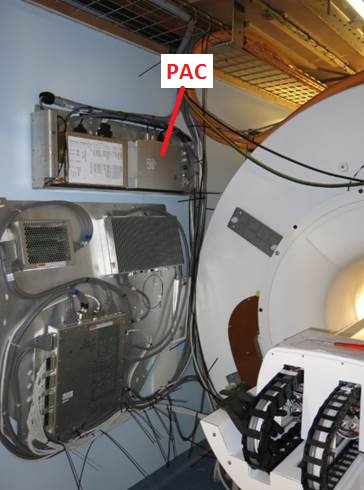

Figure 1. PAC Location

1 Removal of PAC (Mobile Site)

Procedure

  1. Remove Cover.
  2. Remove front bracket with 2 screws.

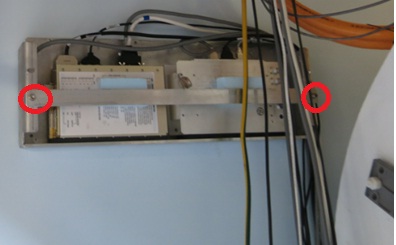

    Figure 2. Remove front bracket

  3. Disconnect all the connectors around it.
  4. Remove 4 screws attached to the PAC.

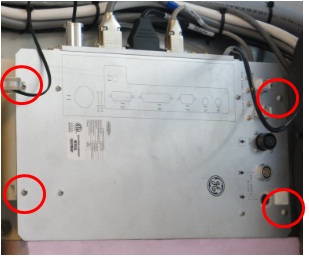

    Figure 3. Remove 4 screws

2 Install PAC (Mobile Site)

Procedure

  1. Place new PAC on base mount and fix it with four screws.
  2. Connect all the cables.
  3. Fix the cables with tie-wraps.
  4. Fasten it with belt.
