Rear Pedestal Sensor Flag Replacement

Prerequisites

Table 3. Safety

FERROUS MATERIAL HAZARD!!
THE PULLEY ASSEMBLY CONTAINS PARTS MADE WITH FERROUS COMPONENTS. HOLDING THIS ASSEMBLY TOO CLOSE TO THE MAGNET BORE WILL FORCIBLY ATTRACT IT TO THE MAGNET.
TO PREVENT POSSIBLE BODILY INJURY, OR DAMAGE TO COMPONENTS, REMOVE THE ASSEMBLY DIRECTLY, NOT MOVING IT IN THE MAGNETIC FIELD MORE THAN IS NECESSARY.

FERROUS MATERIAL HAZARD!!
THE FRONT BRIDGE SUPPORT ASSEMBLY CONTAINS PARTS MADE WITH FERROUS COMPONENTS. HOLDING THIS ASSEMBLY TOO CLOSE TO THE MAGNET BORE WILL FORCIBLY ATTRACT IT TO THE MAGNET.
TO PREVENT POSSIBLE BODILY INJURY, OR DAMAGE TO COMPONENTS, REMOVE THE ASSEMBLY DIRECTLY, NOT MOVING IT IN THE MAGNETIC FIELD MORE THAN IS NECESSARY.

Remove L Rear pedestal cover (Refer to Rear Pedestal Cover).

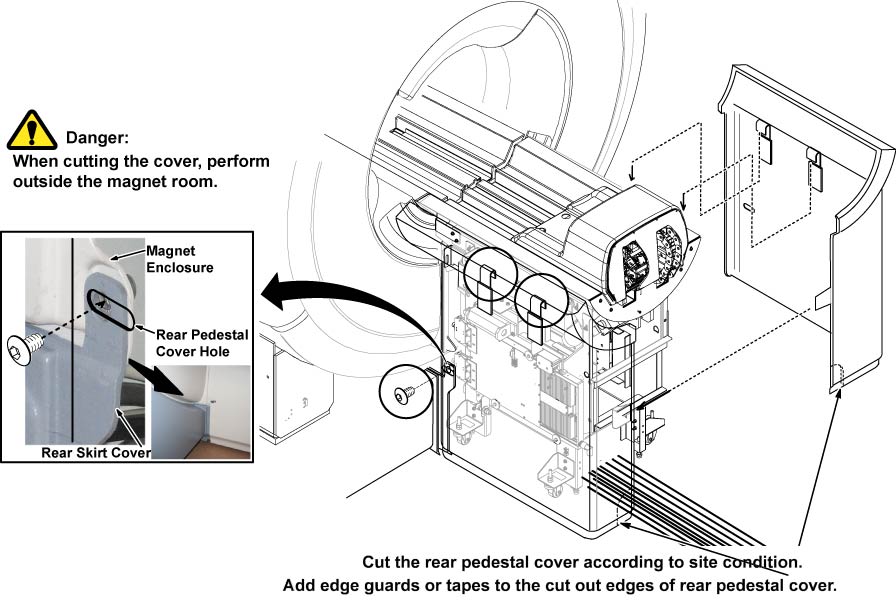

Figure 1. L Rear Pedestal Cover

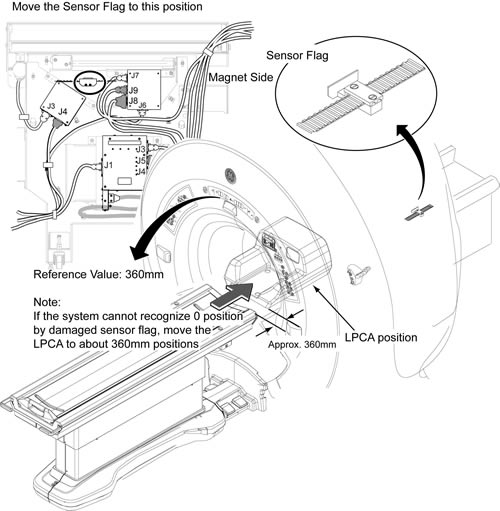

Move the LPCA to IN direction as shown illustration. (Reference Value 180 mm to IN direction)
Check that there is Sensor Flag at position of illustration.

Figure 2. Move to sensor flag removal position
System Power must be turned OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker

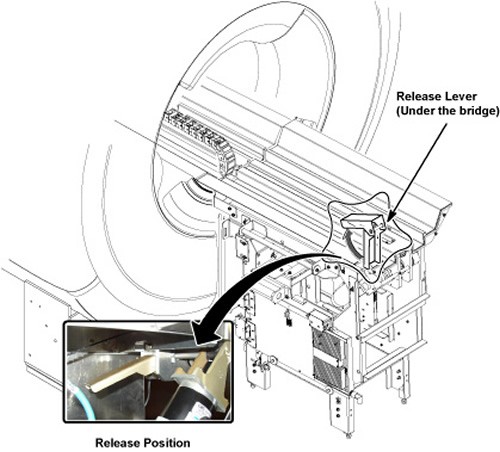

Loosen the belt tension with belt tension lever.

Figure 3. Belt Tension Release Lever

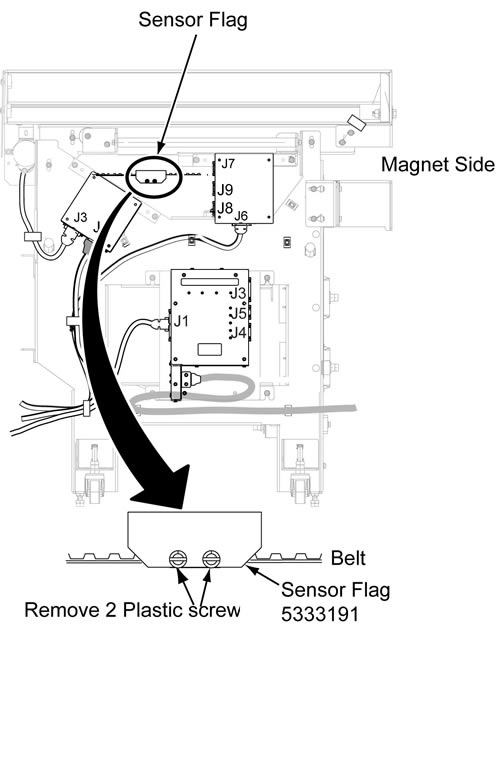

Remove the Sensor Flag by removing the 2 screws.

Figure 4. Sensor Flag Removal
Restore it by reversing the order of the removal procedure.
To ensure the cables under bridge have been tightened by ribbons.

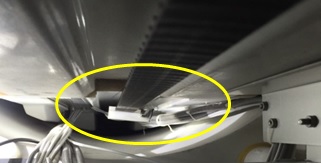

Move table advance to reach home position, and double check there is no contact between cables (under bridge) and home sensor flag when cradle belt is moving.

Figure 5. Cable routing check
