Rear Pedestal Cover Removal

Prerequisites

Table 3. Safety

danger

Strong Magnetic Field!
Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Signa Magnet.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Procedure

Remove 2 bolts from R and L rear pedestal covers.
Remove R and/or L rear pedestal covers.

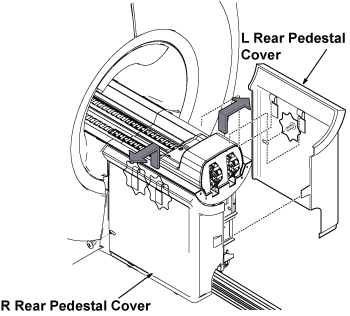

Figure 1. Rear Pedestal Cover Removal
Installation is reverse order of removal.

Finalization

No finalization steps.
