RF Connector Assy

Prerequisites

Table 4. Safety

STRONG MAGNETIC FIELD!
FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

ELECTROCUTION HAZARD!
DANGEROUS AND OR FATAL VOLTAGES ARE PRESENT IN THE ENERGIZED CABINET.
Follow loto steps as given in first section of this document to disable and verify safe voltage levels.

Remove SC Rear cover of magnet room side. Refer to SC Cover Removal
Remove the cables from defective RF Connector Assy front side.
Remove screws fixing RF Connector Assy and Penetration Panel.
Remove the cables from defective RF Connector Assy rear side.

Figure 1. RF Connector Assy Cables
Remove RF Connector Assy from Penetration Panel.

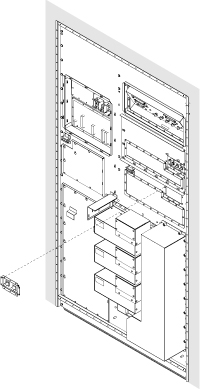

Figure 2. Remove RF Connector Assy
Restore the RF Connector Assy by reverse order of removal.

note:
Make sure to tighten each screw.
Restore Cabinet cover.
