PDU breaker 1 pole kit, 2 pole kit and 3 pole kit

Prerequisites

Table 4. Safety

Notice Image

warning

ELECTROCUTION HAZARD!
DANGEROUS AND OR FATAL VOLTAGES ARE PRESENT IN THE ENERGIZED CABINET.
Follow LOTO steps as given in first section of this document to disable and verify safe voltage levels.

Table 5. Required conditions
Condition	Reference	Effectivity
PDU and Service Disconnect Panel (or Main Disconnect Panel) must be turned OFF. Refer to Lockout / Tagout for MDP(Main Disconnect Panel) or Facility PDU .	-	-

Procedure

Remove Cabinet front cover. Refer to SC Cover Removal

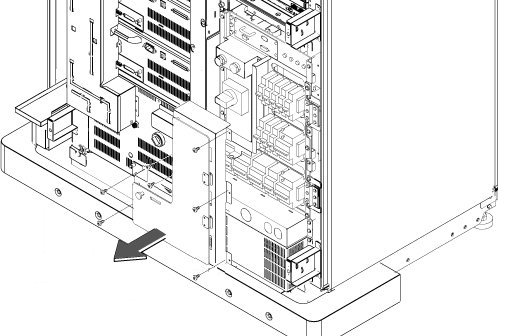

Remove 7 screws and remove the Breaker Front Panel Cover.

Figure 1. Breaker Front Panel Cover
Remove the cables from breaker.

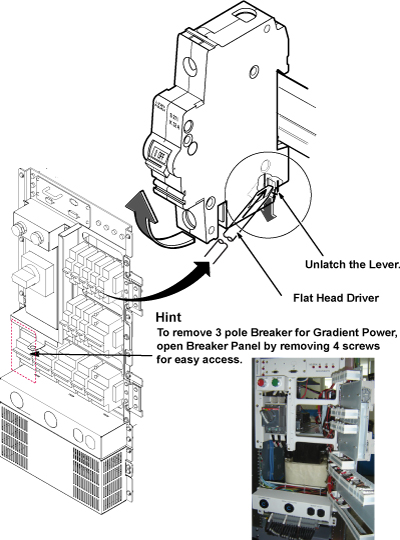

Remove the breaker by pulling the lever to lower direction with flat screw driver.

Figure 2. Remove breaker
Restore it by the reverse order of the removal.

1 Finalization

Procedure

Restore Power for main input circuit breaker.
Restore the Power. Refer to Lockout / Tagout for MDP(Main Disconnect Panel) or Facility PDU .
Run one head or body scan.
