Exciter Connector Assy

Prerequisites

Table 4. Safety

danger

STRONG MAGNETIC FIELD!
FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Notice Image

warning

ELECTROCUTION HAZARD!
DANGEROUS AND OR FATAL VOLTAGES ARE PRESENT IN THE ENERGIZED CABINET.
Follow loto steps as given in first section of this document to disable and verify safe voltage levels.

Procedure

Remove SC Rear cover of magnet room side. Refer to SC Cover Removal
Remove access cover to access to rear connectors.

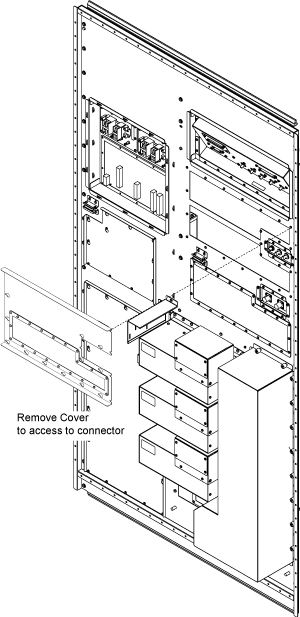

Figure 1. Remove access cover
Remove the cables from defective Exciter Connector Assy front side.
Remove the cables from defective Exciter Connector Assy rear side.

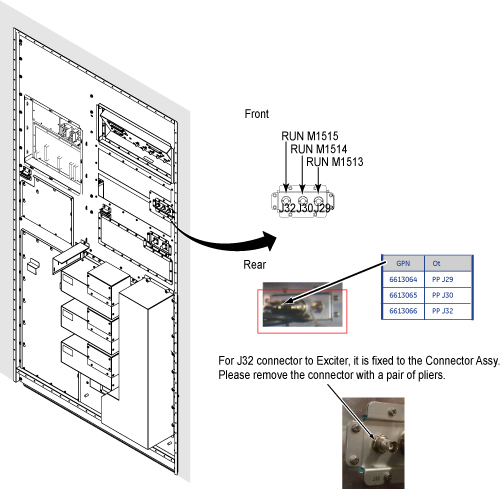

Figure 2. Exciter Connector Assy Cables
Remove screws fixing Exciter Connector Assy and Penetration Panel.
Remove Exciter Connector Assy from Penetration Panel.

Figure 3. Remove Exciter Connector Assy
Restore the Exciter Connector Assy by reverse order of removal.

note:
Make sure to tighten each screw.
Restore Cabinet cover.

1 Finalization

Procedure

Restore the Power. Refer to Lockout / Tagout for PDU in System Cabinet.
Perform Signal to Noise - Head Scan.
