T/R Quad Extremity Coil Parts

Overview

This document identifies field replaceable units and additional accessories for the Invivo T/R Quad Extremity Coil.

Field Replaceable Units

Table 1. Field Replaceable Units
Item Description GE Part Number Supplier Part Number
11.5T HD Quad Extremity Coil with Cable for Flat Table5406350-24535-303-0475*
2HD T/R Quad Extremity Coil Cable Assembly5147225-6870290
3HD Quad Extremity Phantom Positioner5147225-7870327
4Coil Repair Kit Table 25406350-104535-303-0343*
5Pad Kit, HD Quad Extremity Coil for Flat Table (includes Knee, Leg/Foot, Foot and Toe pads)

Pads are customer-consumable components and not covered by any GE service contract. Bill the customer for replacement pads.

5406350-154535-303-0344*
Note:

The part number’s Revision will be the last digit and replace the * (asterisk).

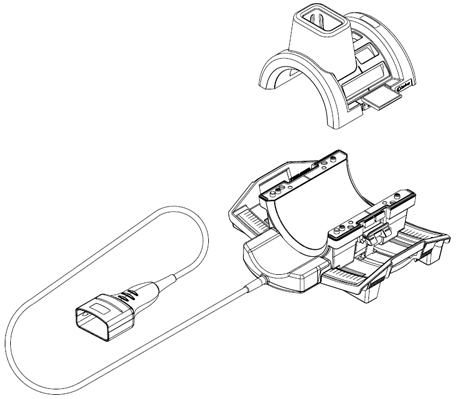

Figure 1. Field Replaceable Units

Additional Accessories

Table 2. Spare Parts Repair Kit
Item Quantity Description Supplier Part Number
102Draw Latch4535-301-8418*
202Handle, Coil Lock4535-301-8076*
302Cover, Lock Handle4535-301-8077*
401T-Bracket4535-301-8078*
502Flat Table Foot4535-302-9815*
604Non-Skid Pads4535-302-5665*
704No. 6-32 x 0.438 FHMS, Brass Screws4535-301-8603*
804No. 4-40 x 0.375 PHMS, Brass Screws4535-301-8643*
903No. 10-32 x 0.375 PHMS, Brass Screws4535-301-8637*
1004No. 6-32 x 0.50 PHMS, Brass Screws4535-301-8658*

The part number’s Revision will be the last digit and replace the * (asterisk).

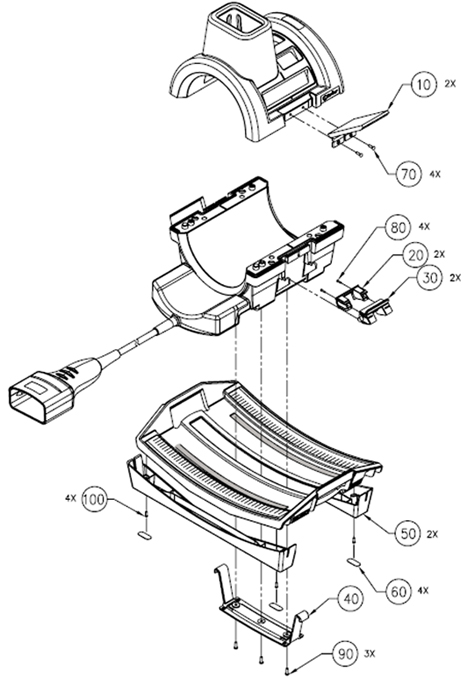

Figure 2. Spare Parts Repair Kit
