This document describes the 1.5T HD 8-Channel
Wrist Array Coil, a Transmit/Receive coil made by Invivo,, Catalog
Number M7000FW.
Figure 1. 1.5T HD 8-Channel Wrist Array Coil Label
Product Identification and Shipping List

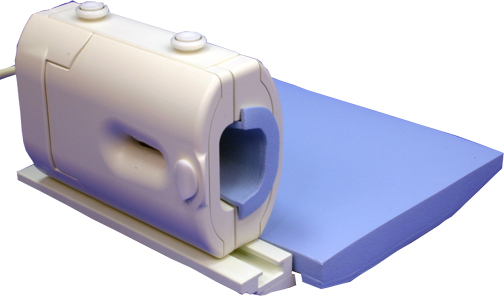

Figure 2. 1.5T HD 8-Channel Wrist Array Coil
Shipping List
Description
GE Part Number
Invivo Part Number
Quantity
1.5T HD 8-Channel Wrist Array Coil with Cable, Baseplate and
Riser (for flat table)
5406395-2
4535-303-0468*
1
8-Channel Wrist Coil Wrist Pad
5430000-20
4535-303-0321*
1
8-Channel Wrist Coil Base Pad
N/A
4535-303-0322*
1
8-Channel Wrist Coil Finger Pad
N/A
4535-303-0323*
1
8-Channel Wrist Coil Palm Pad
N/A
4535-303-0324*
1
8-Channel Wrist Coil Upper Pad
N/A
4535-303-0325*
1
8-Channel Wrist Coil Elbow Pad
N/A
4535-303-0326*
1
Operator Manual
N/A
4535-303-0500*
1
* The part number’s Revision will be the last digit and
replace the * (asterisk).
Environmental Requirements
Storage Requirements: Store the coil
in an air-conditioned Scan or Equipment Room in a storage space of
21.65 in. x 17.72 in. x 13.78 in. (55 cm x 45 cm x 35 cm). The coil
should be transported and stored under the following conditions:
Ambient Temperature Range: +5°C
to +65°C
Relative Humidity Range: 10% to 100%,
noncondensing
Atmospheric Pressure Range: 500 hPa
to 1060 hPa
Dimensions: 18 in. W x 15 in. L x 11
in. H, 46 cm x 38 cm x 28 cm
