20cm QA Phantom Image Series Verification Methods Selection

Prerequisites

Overview

20cm Quality Assurance Phantom image series verification.

Procedure

  1. From the Service desktop, click Image Quality - Image Analysis.
  2. Click the Auto 1x tool on the Image Analysis screen, and select ImgSer20QA.
    1. If Scan Protocols show as Figure 1, please perform 20cm QA Phantom Image Series Verification (without QA2 Protocol).

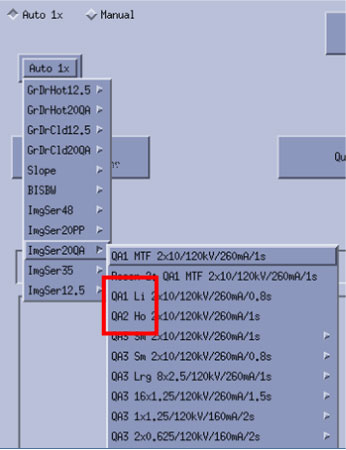

      Figure 1. Auto 1x without QA2 Protocol (example only)

    2. If Scan Protocols show as Figure 2, please perform 20cm QA Phantom Image Series Verification (with QA2 Protocol).

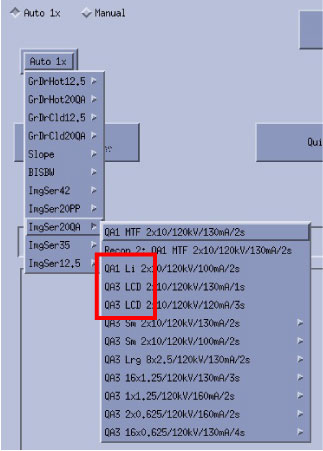

      Figure 2. Auto 1x with QA2 Protocol (example only)

Finalization

No finalization steps.
