1. With the dollies on masonite board, position the gantry
over the floor cutouts. Remove the shipping bolts and place the leveling
pads beneath the adjusters.
|
|
|
2. Route the gantry-end of Run #52 through the rear entry
cable box and under the gantry frame (PDU to Gantry LVAC Power: P/N
2343528 or 2343528-2).
|
|
3. Evenly lower the gantry until it is just off the floor
and rotate it into position such that the leveling pads are centered
in the floor cutouts. Position accuracy is important, because any
deviation in position of the gantry pads is magnified for the table
pads.
|
|

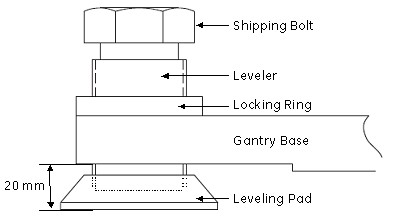

4. Manually turn the gantry levelers until there is 20
mm between the bottom of the leveling pad and the gantry frame.
|
|
5. Lower the gantry until it rests on the floor with
all four leveling pads centered inside the floor cutouts.
|
|
