STEP 19A: Table Cable Connections

1. Pass the ground cables from the PDU and Console (Run #55 and #56) through the gantry to the Table Footswitch.
2. Cut the tie-wraps from around the table cables in the gantry base and route the power cables through the Footswitch.

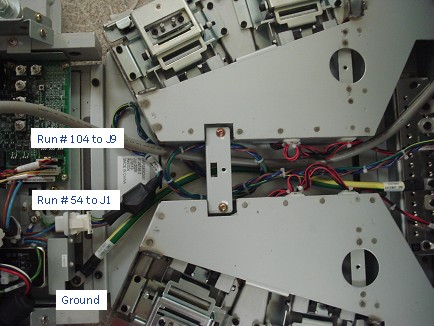

3. Connect the 120VAC table power cable (Run #54) to J1 table power.
4. Connect the table signal cable (Run #104) to J9 on the table control board.
5. Connect the table ground cable to the table ground chassis.

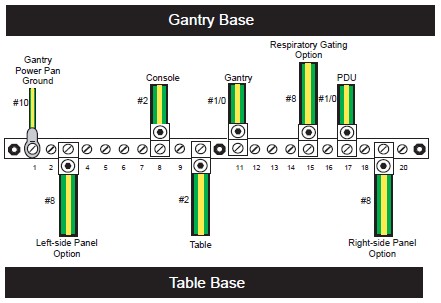

6. Connect all system grounds – Run #55, #56, gantry ground, gantry power pan, table ground, and any Options grounds – to the ground bus bar on the Footswitch.

Labor:	1 person; 0.5 man-hour
Tools:	Standard Tool Kit
