1. Route power and control cables as indicated by the

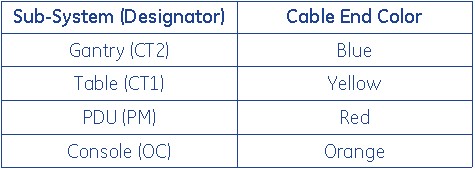

system interconnect diagram. Use the colored indicators on the ends
of the cables as a guide.
|
|
|
2. Console to Gantry: Run #56, #101, #102, #103, #112
(Cardiac), Injector, and any other options.
|
|
|
3. PDU to Console: Run #53.
|
|
4. PDU to Gantry: Run #50, #51, #52, #55, #100.
|
|
5. PDU to UPS: Run #60, #61
|
|
6. PDU to A1 Main Disconnect: Run #110.
|
|
7. Do not store excess cable behind or under the installed
components.
|
|
8. Keep signal and control cables away from power cables
and power wiring.
|
