GOC5 Theory

The VDARC Intel® Jarrell™ motherboard shall meet the following requirements:

• Dual Intel® XeonTM Socket604 processors: 3.2GHz Mid-Voltage 2MB L2 cache

• Onboard regulation of processor voltages

• Intel® E7520 chipset

• 800Mhz Front Side Bus (FSB)

• Minimum of two (2) 10/100/1000 Mb onboard Ethernet ports

• 6.0GB DDR2-400 ECC memory SDRAM® memory using minimum four (4) 184-pin DIMM sockets

• The system shall be configured to redirect the console to the serial port, and allow access through the Ethernet connection (commonly called Serial Over LAN). Requires Intel Management Module (Option 1: Professional)

• One (1) external PS/2a™ keyboard port

• One (1) external HD-15 video monitor port

• One (1) ATA100 interface

• One (1) RS232 port with DB9 (male) interface

• One (1) dual-channel Ultra320 SCSI controller capable of supporting externally connected peripherals

• Minimum of three (3) PCI-X expansion slots (100Mhz min.) capable of 763MB/sec transfer rate between PCI-X bus and system memory

• BIOS configuration is specified in Appendix A - BIOS Configuration.

The VDARC Intel® Westville™ motherboard shall meet the following requirements:

• Dual Intel® Xeon™ Socket604 processors: 3.2GHz 2MB L3 cache

• Onboard regulation of processor voltages

• Intel® E750x chipset

• 533Mhz Front Side Bus (FSB)

• Minimum of two (2) 10/100/1000 Mb onboard Ethernet ports

• 6.0GB DDR-266 SDRAM® memory using minimum six (6) 184-pin DIMM sockets.

• Support Serial Over LAN (SOLAN)

• One (1) ATA100 interface

• One (1) UART, DB9 interface

• One (1) Serial, DB9 (male) interface

• One (1) dual-channel Ultra320 SCSI controller capable of supporting externally connected peripherals

• Minimum of five (5) PCI-X expansion slots (100Mhz min.)

• Capable of 763MB/sec transfer rate between PCI-X bus and system memory

• BIOS configuration is specified in Appendix A - BIOS Configuration.

The Jarrell VDARC shall include three (3) PCI-X expansion slots:

• Low Profile Slot – No riser used. This slot on the motherboard is not used and no slots are available in the chassis to allow for efficient thermal management.

• Full Height Slot – 3U riser added as follows:

  • Riser = Intel Option 2: (1) 100, (2) 133 PCI-X (Active)

  • Top Slot = DAS Interface Processor (VDIP) card (2382000).

  • Middle Slot = OPEN

  • Bottom Slot = Dual-port NIC

The Westville VDARC shall include at least five (5) PCI-X expansion slots.

• One (1) slot shall accommodate the VCT DAS Interface Processor (VDIP) card (2382000).

• One (1) slot shall accommodate a VHDCI68f SCSI port access to on-board U320 SCSI controller.

• One (1) slot shall accommodate a DB9 male serial port access to on-board serial port.

• Two (2) slots shall accommodate a low-profile or “half height” network interface cards.

• Any remaining slots shall be able to accommodate low-profile or “half height” cards

The VDARC does NOT require an internal 3.5”, half-height, 1.44MB floppy diskette drive.

The Jarrell VDARC shall include one (1) internal hard disk drive as follows:

• 2.5” half height form factor

• IDE ATA-100 interface

  note:

  A 40-pin cable may be used to facilitate airflow within the chassis as it does not appear to adversely affect performance of the system.

• Minimum unformatted capacity of 40GB

• Minimum rotational rate of 5,400 RPM

• Qualified Drives as agreed on between supplier and GEHC

The Westville VDARC shall include one (1) internal hard disk drive as follows:

• 3.5” half height form factor

• IDE ATA-100 interface

• Minimum unformatted capacity of 40GB

• Minimum rotational rate of 7,200 RPM

The VDARC shall include one (1) internal DVD-ROM drive as follows:

• 5.25” “slim” form factor

• IDE (ATAPI) interface

• Minimum Rotational speed: 24X

• Minimum of 512K internal data buffer

• Read compatible with CD-R, CD-ROM, CM-ROM-XA, CD-I, CD Audio (CD-DA), PhotoCD Multi-session, CD-Extra, CD-Text, and DVD-ROM.

• Due to requirements of the GEHC Operating System auto-loader this drive cannot be the master drive on the IDE BUS.

The Jarrell VDARC shall have four (4) external Ethernet port connections as follows:

• Two (2) ports may be motherboard-resident (e.g. two ports onboard the Intel® Jerrell™)

• Intel® 82546GB controller

• Two (2) ports shall be added using a full-profile, dual-port, PCI-X expansion card as agreed on between supplier and GEHC

• IEEE 802.3 compatible 10/100/1000 MB/sec auto-sensing Ethernet

• Standard shielded 8-pin RJ45 locking female connector mounted at rear of the chassis

• The Ethernet connector shall have the following pin assignments:

The Westville VDARC shall have six (6) external Ethernet port connections as follows:

• Ports may be motherboard-resident (e.g. two ports onboard the Intel® Westville™)

• Intel® 82546GB controller

• Ports may be added by using (2) low-profile, dual-port, PCI-X expansion cards as follows:

• Intel® PWLA8492MT (PBA# C29887-002 or C41421-003)

• IEEE 802.3 compatible 10/100/1000 MB/sec auto-sensing Ethernet

• Standard 8-pin RJ45 locking female connector mounted at rear of the chassis

• The Ethernet connector shall have the following pin assignments:

The VDARC shall have two (2) external Ultra320 SCSI ports on a dual-channel bus, each having a VHDCI68 female connector with captive #2-56 female screw jacks for cable attachment.

One port may reside on the motherboard, protruding through the rear of the chassis, and shall be pulled from the SCSI BUS referenced above. The other may be pulled from a board-resident bus and made available externally via an unused PCI slot at the rear of the chassis.

The Jarrell VDARC shall have two (2) serial ports, assigned as follows:

• One RJ-45 physical interface

• One DB9 physical interface

The Westville VDARC shall have two (2) serial ports, assigned as follows:

• ttyS0 - pulled to a DB9 (male) interface at the rear of the chassis

• ttyS1 - redirected for serial-over-LAN requirements.

The Jarrell VDARC shall include external switches and indicators on the chassis as follows:

• A pushbutton system POWER ON/OFF switch, which toggles system power ON or OFF when pressed or held.

• A pushbutton system RESET switch, accessible on the front of the chassis, that re-initializes all internal hardware without cycling power to the VDARC (hard reset/soft boot).

• LED indicators shall be accessible and visible on the front of the chassis with the appropriate IEC icons and colors as follows:

  • System power is ON - steady BLUE

  • LAN Activity - flashing AMBER

  • Hard Disk Activity - flashing GREEN

The Westville VDARC shall include external switches and indicators on the chassis as follows:

• A pushbutton system POWER ON/OFF switch, which toggles system power ON or OFF when pressed or held.

• A pushbutton system RESET switch, accessible on the front of the chassis, that re-initializes all internal hardware without cycling power to the DARC (hard reset/soft boot).

• LED indicators shall be accessible and visible on the front of the chassis as follows.

  • System power is ON - steady GREEN - labeled “I/O” or “Power”

  • LAN Activity - flashing GREEN - labeled “LAN”

  • Hard Disk Activity - flashing RED - labeled “HDD”

The VDARC shall operate within the following limits of environmental conditions:

The VDARC shall sustain no permanent damage while in the following non-operating environment, such as during shipment.

The VIG Intel® Jarrell™ motherboard shall meet the following requirements:

• Support Dual Intel® XeonTM Socket604 processors (3.2GHz minimum)

• Onboard regulation of processor voltages

• Intel® E752x chipset

• 800Mhz Front Side Bus (FSB)

• Minimum of one (1) 10/100/1000 Mb onboard ethernet port

• One (1) external PS/2™ keyboard port

• One (1) external HD-15 video monitor port

• 6.0GB DDR2-400 ECCmemory SDRAM® memory using minimum six (6) 184-pin DIMM sockets.

• Support Serial Over LAN (SOLAN)

  - Requires Intel Management Module (Option 1: Professional)

• One (1) PCI-X expansion slot (100Mhz min.) accommodating a riser card.

• A board management controller (BMC), which supports IPMI 1.5 or later. The BMC shall be able to control motherboard power via IPMI commands.

• BIOS configuration is specified in Appendix A - BIOS Configuration.

• Support Dual Intel® XeonTM Socket604 processors (3.2GHz minimum)

• Onboard regulation of processor voltages

• Intel® E750x chipset

• 533Mhz Front Side Bus (FSB)

• Minimum of one (1) 10/100/1000 Mb onboard ethernet port

• 6.0GB DDR-266 SDRAM® memory using minimum six (6) 184-pin DIMM sockets.

• Support Serial Over LAN (SOLAN)

• One (1) PCI-X expansion slot (100Mhz min.) accommodating a riser card.

• BIOS configuration is specified in Appendix A - BIOS Configuration.

The VIG shall include one (1) PCI-X expansion slot:

• Low Profile Riser Slot – no riser used

• Full Height Riser Slot – 1U riser, Intel Option 1: (1) 100/133 PCI-X

This expansion slot shall contain one of the following:

• GEHC P/N 2395084 VCT Recon Acceleration Card (VRAC) – P/N 5159834

• GEHC P/N 5143008 VCT Recon Acceleration Card 2 (VRAC2) – P/N 5159834-2 or -3

The IG shall include at least one (1) PCI-X expansion slot capable of accommodating a full height, three-quarter length PCI card.

This expansion slot shall contain a VCT Recon Accelerator Card (GEHC part no. 2395084)

The VIG shall include external switches and indicators on the chassis as follows:

• A system pushbutton POWER ON/OFF switch, which toggles system power ON or OFF when pressed or held.

• A pushbutton system RESET switch, accessible on the front of the chassis that re-initializes all internal hardware without cycling power to the VIG (hard reset/soft boot).

• LED indicators shall be accessible and visible on the front of the chassis with the appropriate IEC icons and colors as follows:

  System power is ON - Steady BLUE

  LAN Activity - Flashing AMBER

The IG shall include external switches and indicators on the chassis as follows:

• A system pushbutton POWER ON/OFF switch which toggles system power ON or OFF when pressed or held.

• A pushbutton system RESET switch accessible on the front of the chassis that reinitializes all internal hardware without cycling power to the IG (hard reset/soft boot).

• LED indicators shall be accessible and visible on the front of the chassis as follows.

  • System power is ON - steady GREEN - labeled “I/O” or “Power”

  • LAN Activity - flashing GREEN - labeled “LAN”

The IG shall operate within the following limits of environmental conditions:

The IG shall sustain no permanent damage while in the following non-operating environment.

IG defined as:

• 5159834 VIG with 2395084 VCT Recon Accelerator Card (VRAC)

• 5159834-2 VIG2 with 5143008 VCT Recon Accelerator Card 2 (VRAC2)

• 5159834-3 VIG3 with 5143008 VCT Recon Accelerator Card 2 (VRAC2)

5114533 IG as defined herein including:

• Dual Intel® XeonTM 2.8Ghz processors, 512KB L2 Cache, 2.0GB DDR200 SDRAM memory, etc.

• 2316826 VCT Recon Accelerator Card (VRAC).

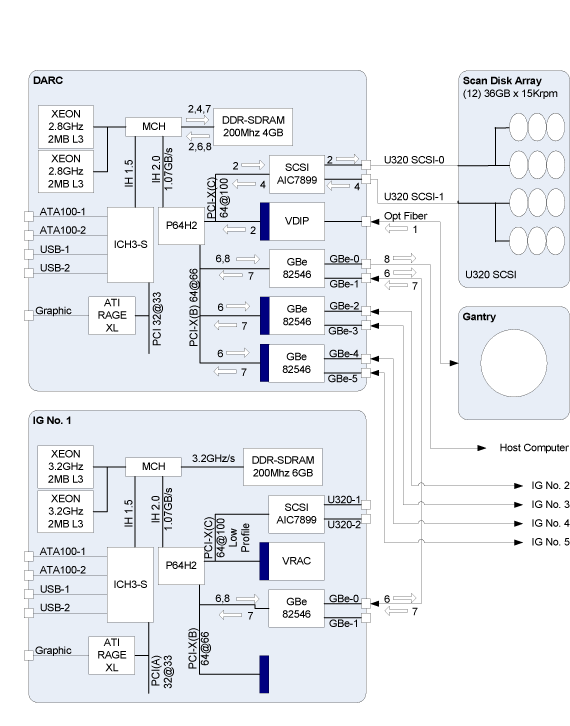

The VDARC node will take advantage of a standard, off-the-shelf motherboard, using dual microprocessors to increase processing density. The VDARC node will use very high performance general-purpose processors, memory, and a server motherboard with GB Ethernet and SCSI port(s), and power supply.

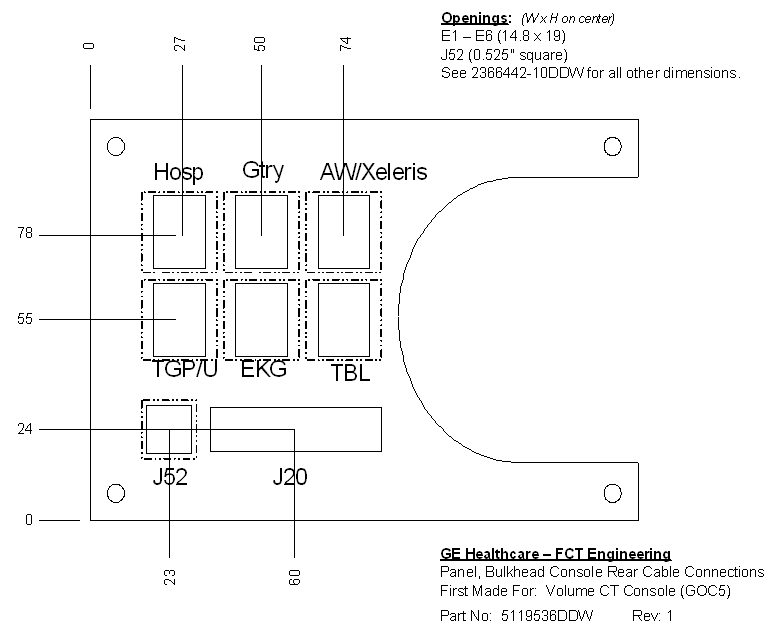

The chassis is a standard EIA 19" x 2U rack-mount with a maximum depth of 20". The chassis have a cooling system capable of sufficiently dissipating heat created by the motherboard's dual processors.

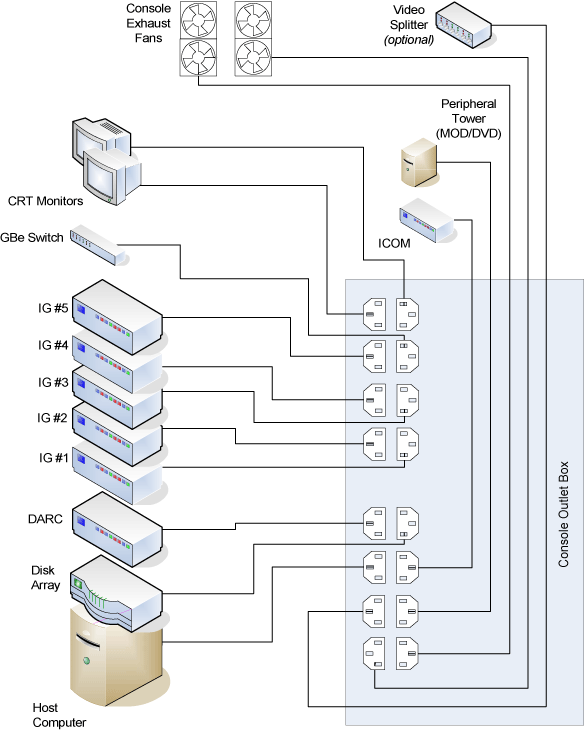

The VDARC will boot up when AC power is provided to the components power supply without requiring a PWON signal toggle. Such a hardware switch is needed for installation power-on and recovery from unexpected BIOS power-on settings.

A power-on LED will indicate that the VDARC power supply is providing DC output to the motherboard and should be mounted on the front of the chassis. Additional LED indicators such as on/off/blinking are more fully described in motherboard vendor specifications.

The VDARC shall be able to be reset by a single hardware switch located on the front of the chassis.

The VDARC disk consists of a single SCSI or E-IDE disk and provides OS code, application programs, tables, and parameters to the GOC5. All nodes in the GOC5 are booted from this disk, which also has the swap partition area to the VDARC node.

• Rotation speed: 7,200 rpm or higher

• Interface: ATA100/133 (recommended) or newer; Ultra160/320 SCSI (acceptable)

• Capacity: 36GB or higher

• Form Factor: 1" height, 3½” HDD

• Connection: 40-pin ATA100, 80-pin SCA2, or HD68-pin

The high-speed Scan Data Disks are connected to the VDARC node via an internal Ultra320 SCSI bus. To increase the disk read/write speeds software RAID0 (striping) is employed. The Scan Data Disk configuration may change according to the number of detector slices, DAS trigger rates, and/or IG performance.

• Rotation speed: 7.2k, 10k, or 15k rpm or higher

• Interface: Ultra320 SCSI or successor

• Capacity: 18, 36, 73, 146, or 300GB

• Form factor: 1" height x 3½” HDD

• Connection: HD68-pin, powered by 4-pin commercial Mate-N-Lok

• RAID0: striping up to Twelve (12) disks

This PCI VDIP card supports almost the same functionality as the current DIP in that it converts the optical signal received from the Gantry into electrical raw data and writes that data to one of the double buffers on the card. When the received data count reaches a predetermined value it will switch over to the other buffer. The VDARC then receives this data via the PCI bus.

• Serial data received from a fiber optic interface (see Table 1).

• For 32 slice configuration, use channel 1 for data transfer. Do not use channel 2.

• For 64 slice configuration, use channel 1 for transferring data from DAS A-side and channel 2 for transferring data from DAS B-side.

• Optical fiber channel 1 and channel 2 cannot be swapped. When channel 1 or channel 2 has the wrong data for the channel, the VDIP will generate a PCI interrupt and show “incorrect channel connection” at the interrupt status register.

Additional details can be found in the DRS spec. - 2382000DRS.

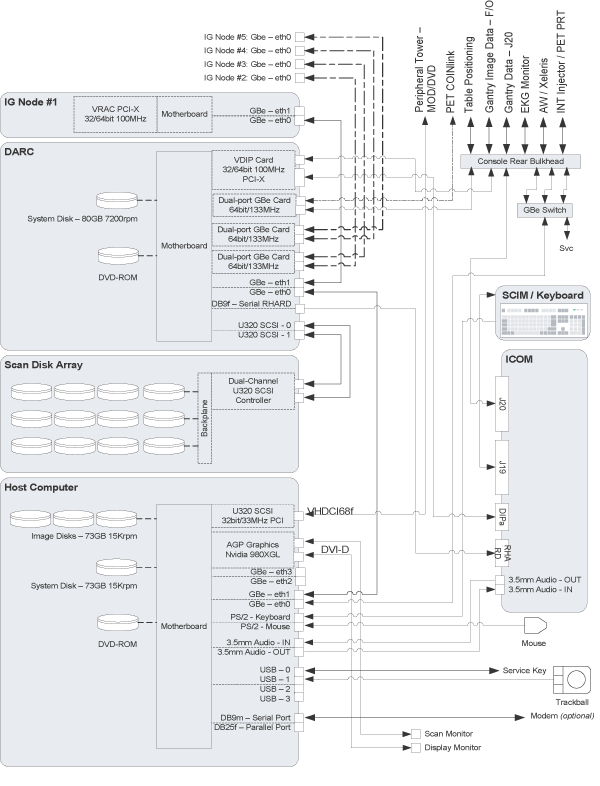

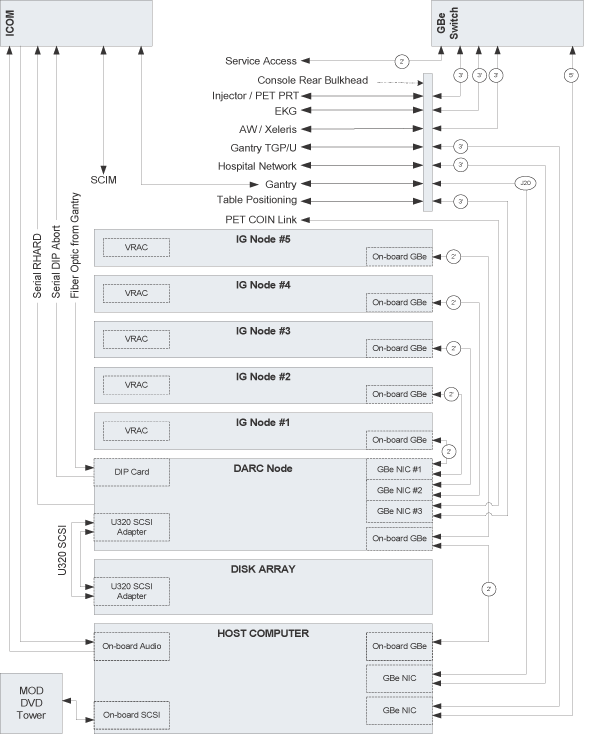

Each IG node is to be connected to the VDARC via an off-the-shelf Gigabit Ethernet (GbE) card connected to one of the VDARC's PCI-X slots. Depending on the number of optional IG nodes additional GbE cards may be added to the VDARC.

• Dual Gigabit Ethernet ports

• 10Base-T, 100Base-TX, 1000Base-TX IEEE802.3ab compatible

• 64bit, 66MHz (or higher) PCI-X interface

• Low profile form factor

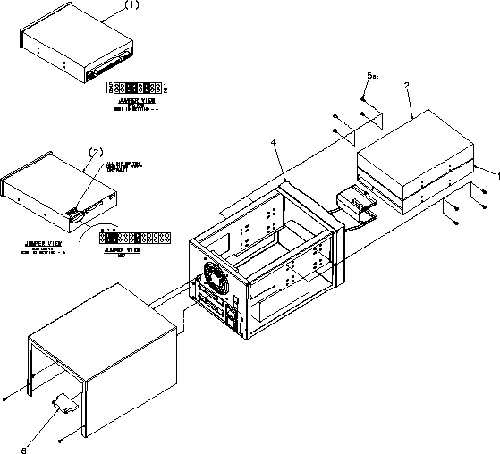

The DVD-ROM drive is used for software installation, system diagnostics, and to support stand-alone operation of the VDARC.

The IG computer will be identical to the VDARC computer as described in above with the following exceptions:

• Chassis size: 19" rack-mount type EIA 1U height x 20" max depth

• DVD-ROM Drive: the IG computer will not have a DVD-ROM drive

This “low-profile” PCI card accelerates the two-dimensional (2D) back-projection process of the GOC5 and is plugged into a 64bit, 66MHz (533MB/sec) PCI-X slot on the IG node.

This VCT Recon Accelerator Card (VRAC) shall increase the reconstruction performance of the Global Operator Console Version 5 (GOC5) by off-loading 3-dimensional, or cone beam, back-projection (3D-BP) from its general-purpose processors to fully programmable hardware. The current software version of 3D-BP creates one image, or frame, every 3-seconds. This hardware implementation Has the capability to create images at a rate of 7-frames per second (FPS). The card is on the PCI-X bus of each IG Node. All communication between the node’s Host Computer and the VRAC is through this bus.

Following are the high-level requirements for the VRAC card:

• Perform 2D parallel beam back-projection at >6fps

• PCI-X low-profile compatible

• Communicate with IG computer through a go => complete protocol

• Support PCI and Mailbox interrupts

• Reconstruct any image matrix size up to 524,288 32bit pixels

• In-system programmable FPGA design via software download

The major elements of the VRAC card consist of:

• 4 Field Programmable Gate Array (FPGA)

• QDR™ SRAM - creates two blocks of memory

• FLASH Memory - contains the FPGA's configuration code
