Removing the front endbell

Removes the front endbell from the magnet.

Prerequisites

Personnel Requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Table interface cover is removed.

Procedure

  1. If installed, lower the patient table to the down-limit position.
  2. Remove two screws securing the front endbell to the magnet.
    Figure 1. Front endbell screws
  3. Activate both levers releasing the six remote latches.

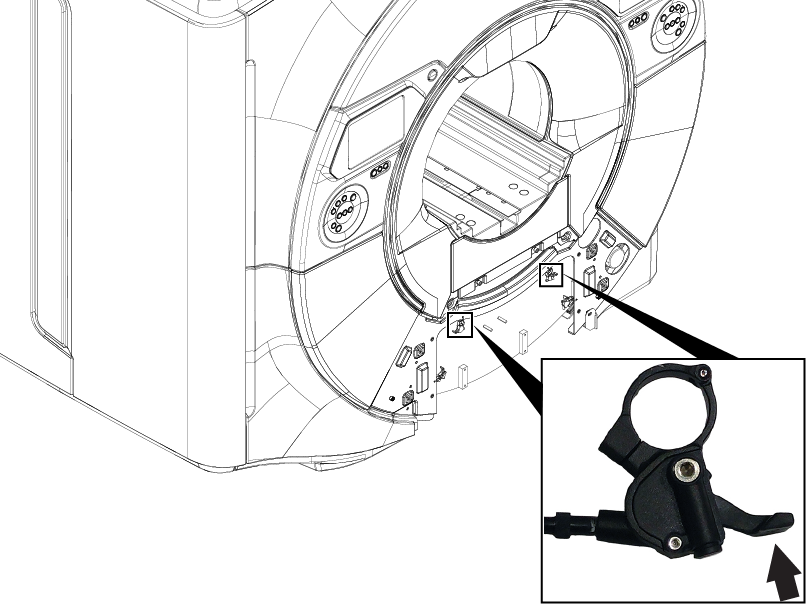

    Figure 2. Remote latch release levers
  4. Remove the front endbell from the magnet.

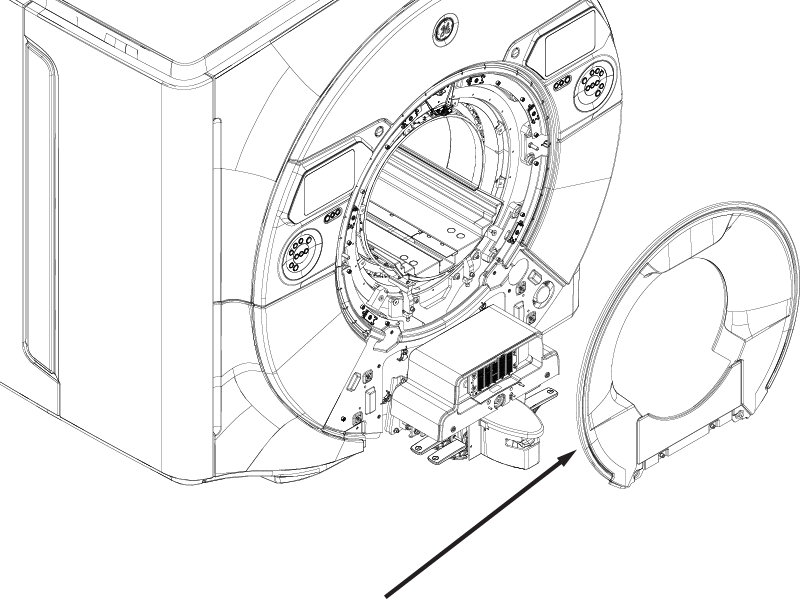

    Figure 3. Front endbell
