• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA3037D010GYZ
  • Topic ID: id_2002982 Version: 3.4
  • Date: Jul 7, 2021 3:59:55 PM

Removing the magnet right-hand rear cover

Removes the rear cover from the right-hand side of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Rear endbell is removed.

Procedure

  1. Remove four screws securing the right-hand rear cover to the magnet.

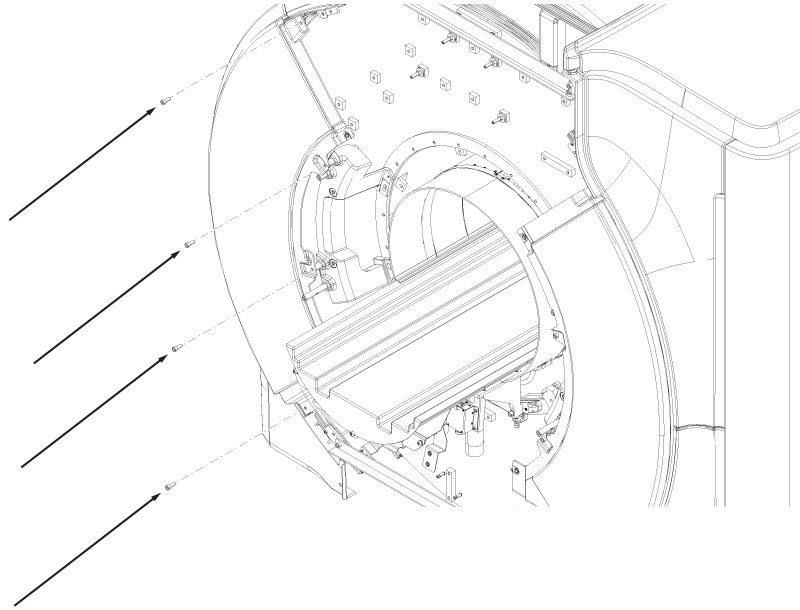

    Figure 1. Right-hand rear cover screws
  2. Pull the right-hand rear cover away from the magnet to release three ball catch latches.
