Removing the magnet rear cable cover bracket

Removes the bracket on which the rear cable cover hangs from the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Magnet rear cable cover is removed

Procedure

  1. Remove the top screw from both ends of the magnet rear cable cover bracket.

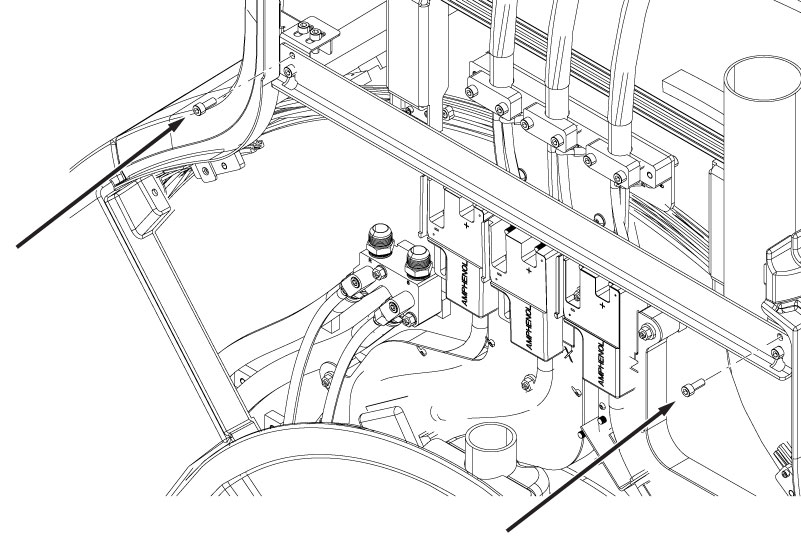

    Figure 1. Rear cable cover bracket top screws
  2. Loosen the bottom screw on both ends of the bracket.

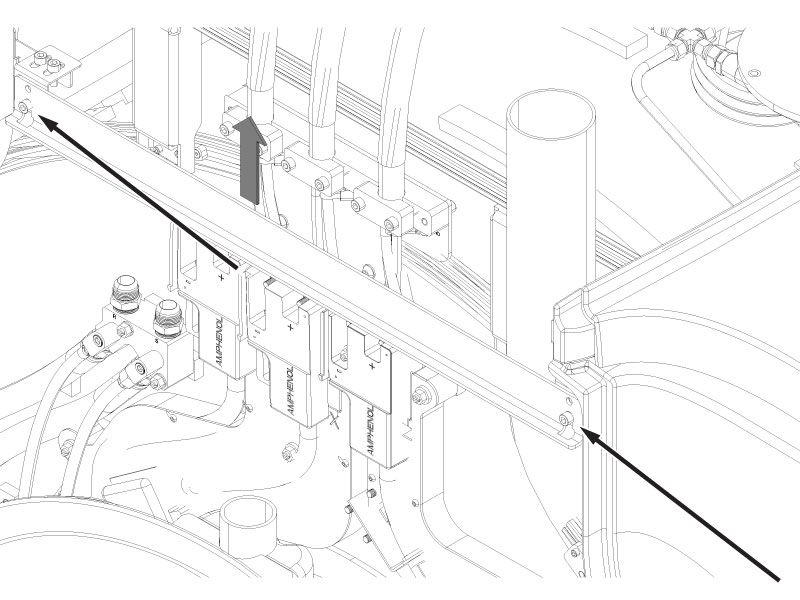

    Figure 2. Rear cable cover bracket removal
  3. Lift the bracket upwards to remove it from the magnet.
  4. Remove the two bottom screws from the magnet enclosure bracket.
