Removing the magnet left-hand upper rear cover

Removes the upper cover from the left-hand rear corner of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-15 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Left-hand lower rear cover is removed.
Upper service access panel is removed.
Rear cable cover is removed.

Procedure

  1. Remove the five screws securing the left-hand upper rear cover to the magnet.

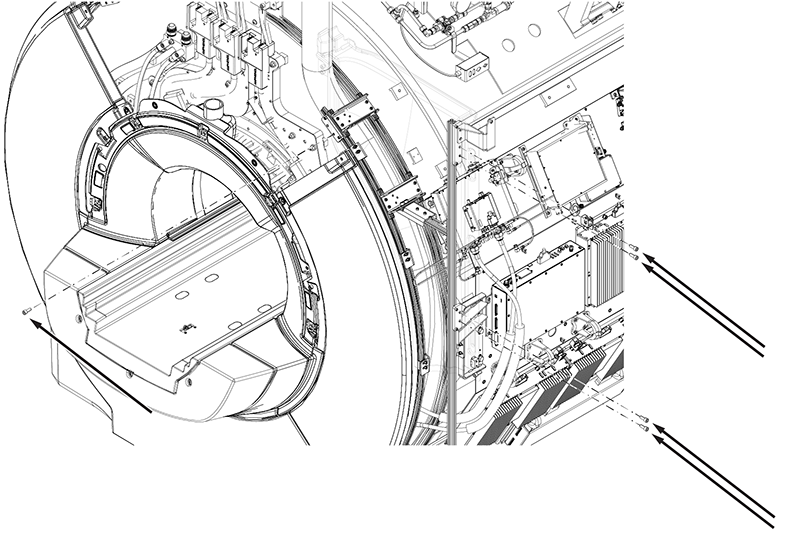

    Figure 1. Left-hand upper rear cover screws
  2. Remove the cover from the magnet.
