Removing the magnet left-hand rear cover

Removes the rear cover from the left-hand side of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Rear endbell is removed.

Procedure

  1. Remove four screws securing the left-hand rear cover to the magnet.

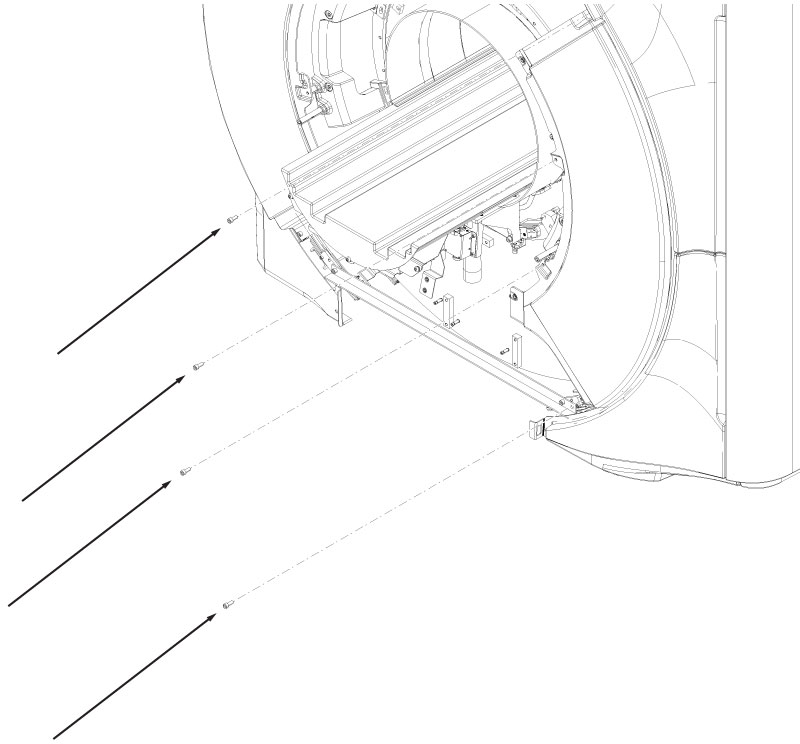

    Figure 1. Left-hand rear cover screws
  2. Pull the left-hand rear cover away from the magnet to release three ball catch latches.
