Removing the magnet left-hand lower rear cover

Removes the lower cover from the left-hand rear corner of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Service access vent is removed.

Procedure

  1. Remove four screws securing the left-hand lower rear cover to the magnet.

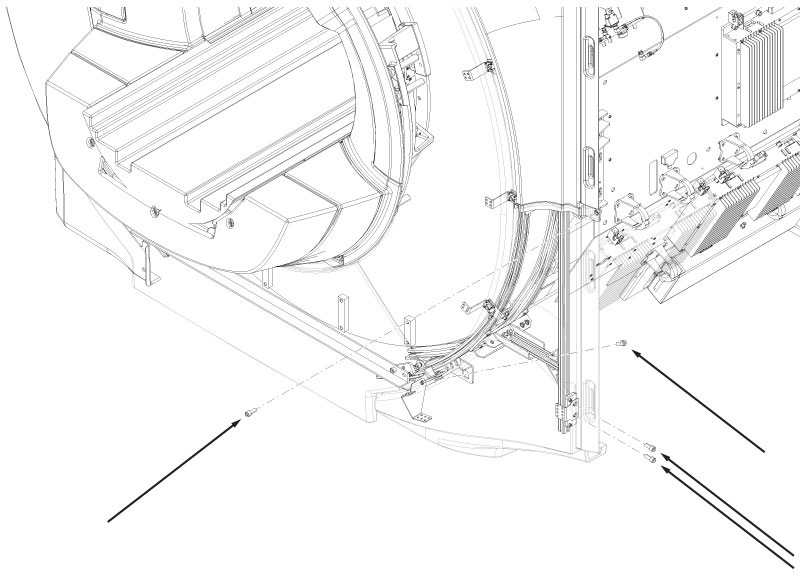

    Figure 1. Left-hand lower rear cover screws
  2. Remove the cover from the magnet.
