Removing the bore-end cradle cover

Removes the bore-end cover from the patient cradle.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Move the cradle to in-limit position.

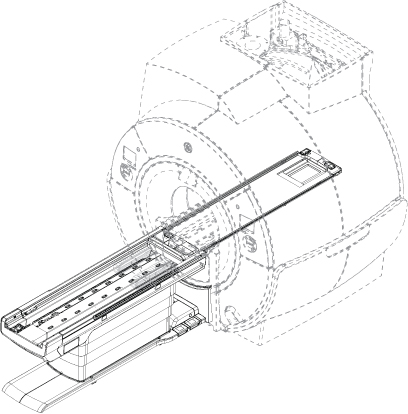

    Figure 1. Patient cradle at in-limit position
  2. Remove four screws securing the bore-end cradle cover.

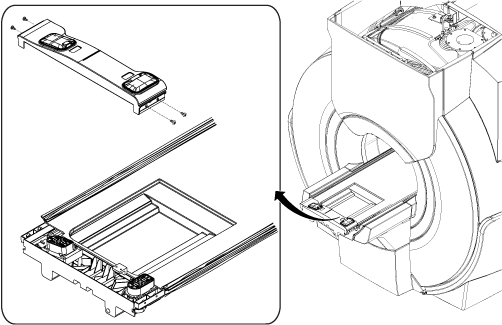

    Figure 2. Bore-end cradle cover screws
  3. Remove the two screws securing the mircrophone to the bore-end cradle cover.

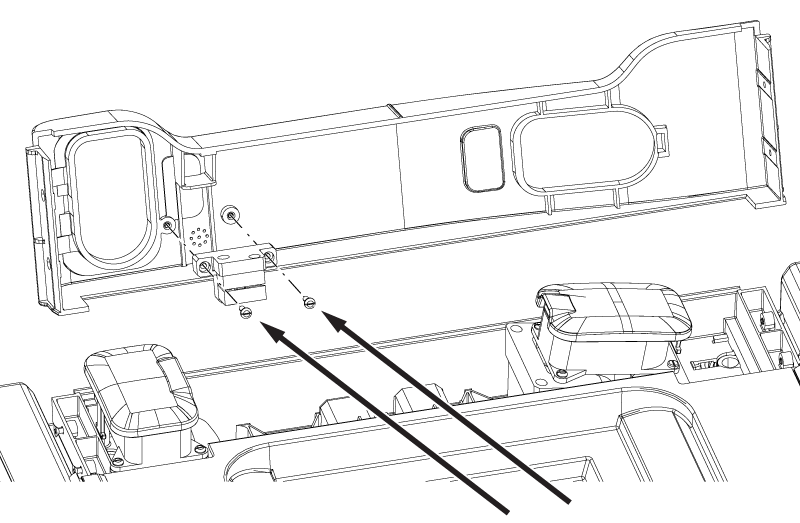

    Figure 3. Front microphone screws
  4. Remove bore-end cradle cover.
