Installs the cover onto the top of the right-hand side of the magnet enclosure.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 2 | - | 10 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
| Required conditions |
|---|
| Right-hand center cover is installed. |
| Left-hand upper front cover is installed. |
Procedure
- Lower the right-hand top cover onto the magnet. Make sure the hooks slide behind the right-hand center cover.
Figure 1. Right-hand top cover
- Install one M10 x 25 Socket Head Cap Screw and two M6 x 10 Socket Head Screws securing the cover to the magnet.

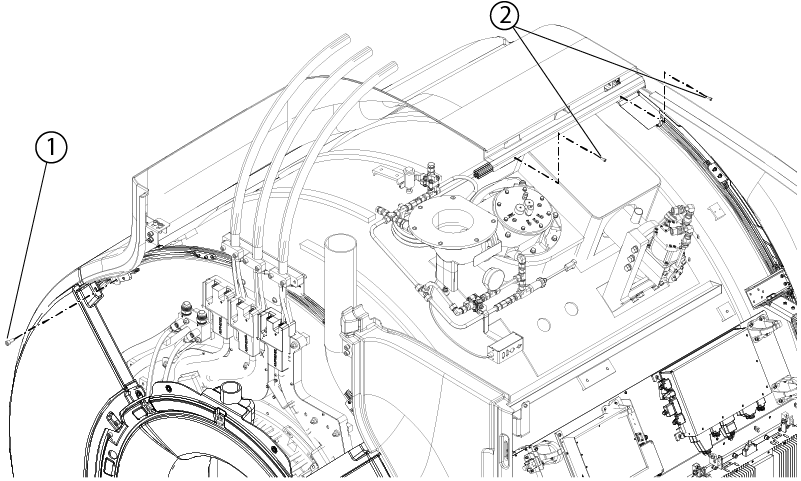

Figure 2. Right-hand top cover screws
