Installing the magnet right-hand rear cover

Installs the service end cover onto the right-hand side of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Position the right-hand rear cover at the rear of the magnet.
  2. Align the three ball and catch strikers on the back of the right-hand rear cover with the ball and catch latches on the magnet.

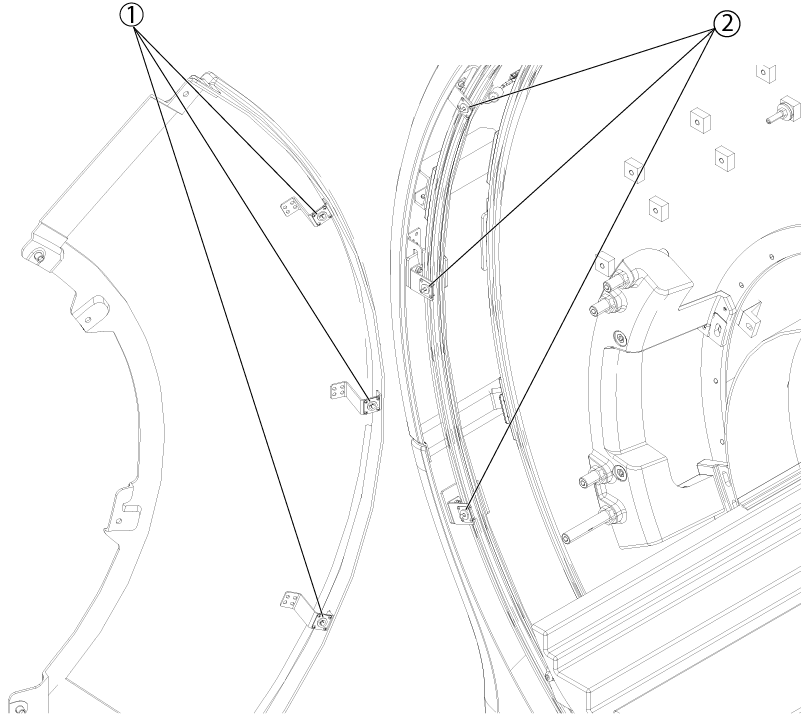

    Figure 1. Right-hand rear cover alignment
    1Ball catch strikers
    2Ball catch latches
  3. Install the cover onto the magnet. Make sure the ball and catch latches retain the cover.
  4. Install four M10x25 socket head screws securing the cover to the magnet.

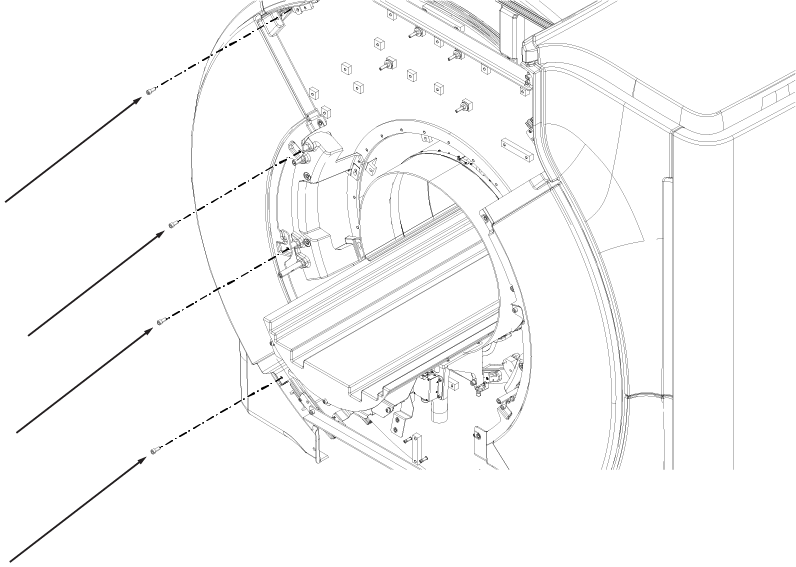

    Figure 2. Right-hand rear cover screws
