Installing the patient table side covers

Installs the side covers onto the patient table.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Install the left and right patient table side covers onto the patient table.
  2. Install six screws per side securing the covers to the table.

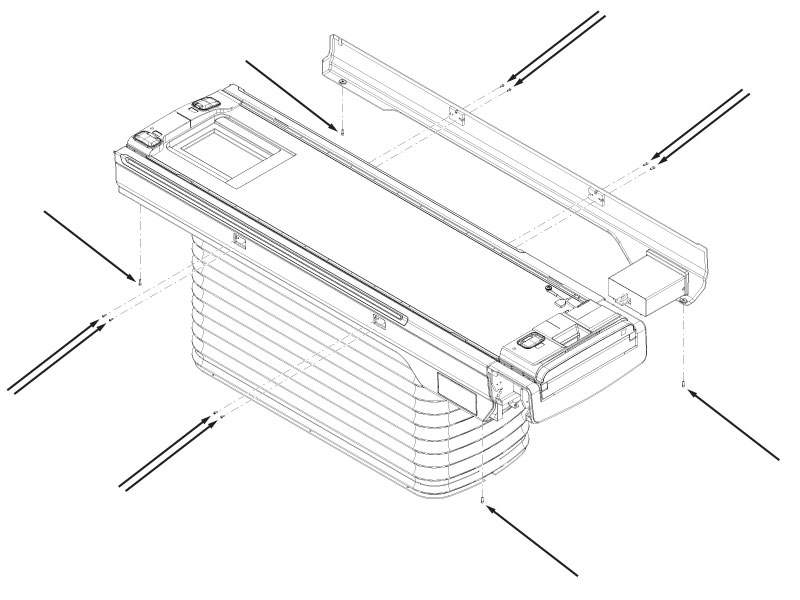

    Figure 1. Side cover screws
  3. Install two rubber caps per side.

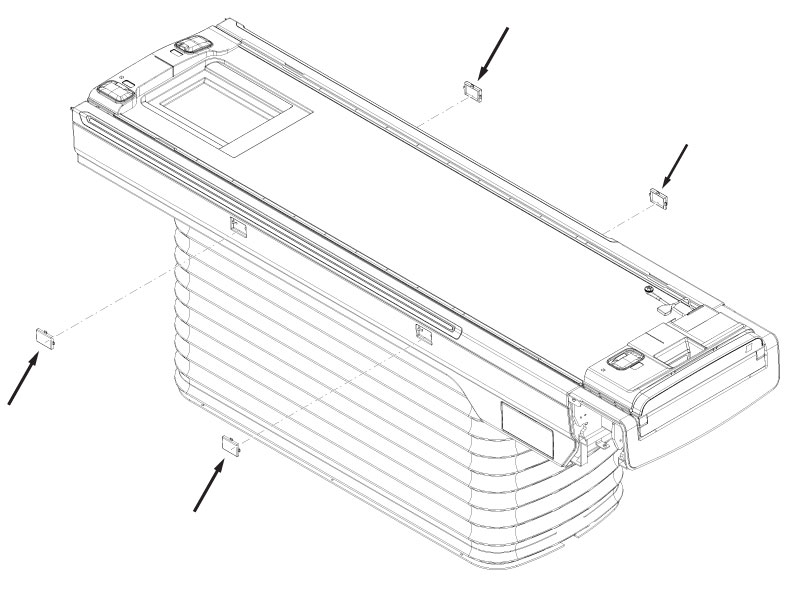

    Figure 2. Side cover rubber caps
