Installing the patient table bottom cover

Installs the bottom cover onto the patient table.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Install the bottom cover onto the patient table.
  2. Install four screws securing the bottom cover to the table.

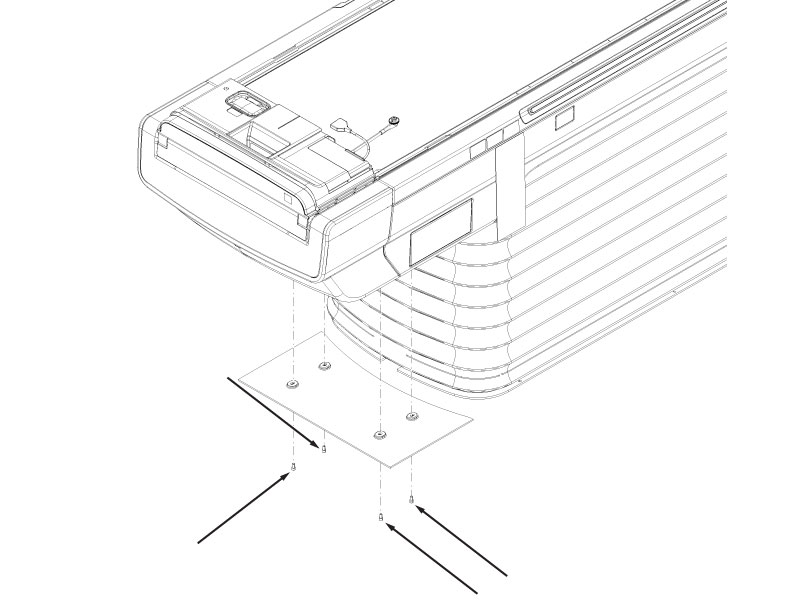

    Figure 1. Patient table bottom cover screws
