Installing the motor cover

Installs the motor cover onto the patient table.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Install the motor cover onto the patient table.

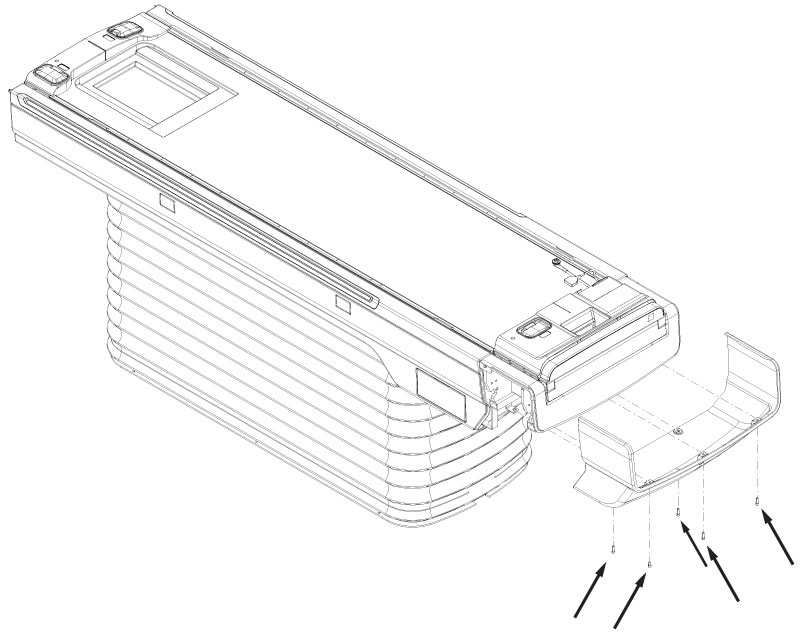

    Figure 1. Motor cover screws
  2. Install five screws securing the motor cover to the patient table.
