• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA302F3510GYZ
  • Topic ID: id_2004492 Version: 4.0
  • Date: Feb 25, 2021 2:30:06 AM

Installing the magnet rear cable cover bracket

Installs the support bracket, which supports the magnet rear cable cover.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Magnet right hand top cover is installed
Magnet left hand upper rear cover is installed

Procedure

  1. Loosely install the bottom M10 x 25 Socket Head Cap Screw at each end of the magnet rear cable cover bracket onto the magnet enclosure bracket.

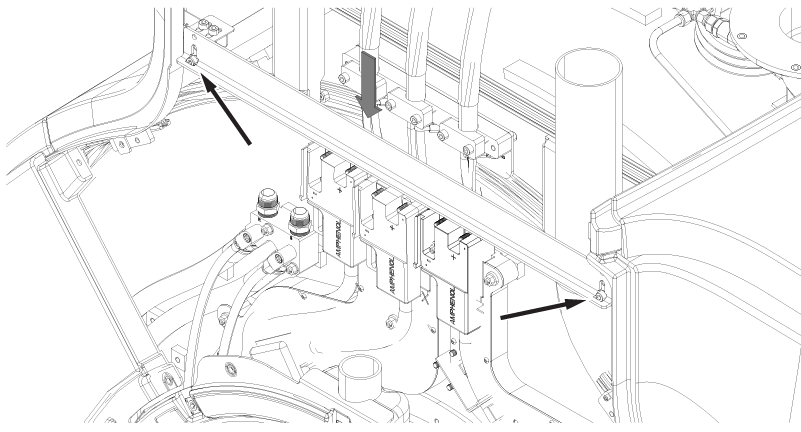

    Figure 1. Rear cable cover bracket installation
  2. Install the rear cable cover bracket by lowering it onto the bottom screws.
  3. Install the top screw on each end of the bracket.

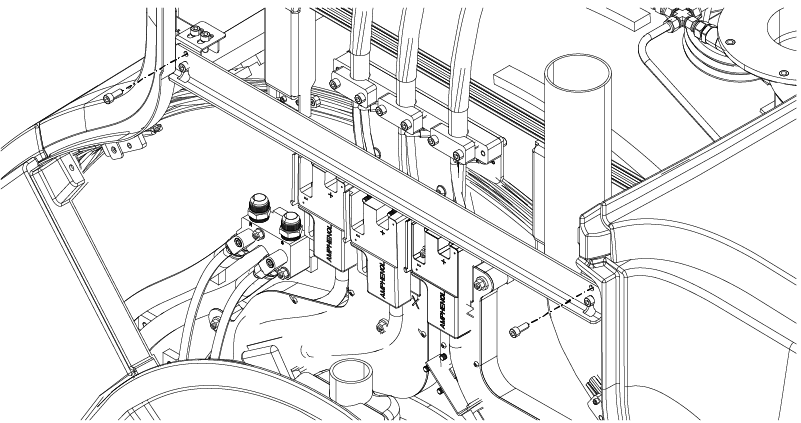

    Figure 2. Rear cable cover bracket top screws
  4. Tighten the rear cable cover bracket lower screws.
