Installing the magnet left-hand upper front cover

Installs the upper cover onto the front left-hand corner of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
2-15 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Magnet front cover is installed.

Procedure

  1. Install the left-hand upper front cover onto the magnet. Make sure the tabs of the cover are inserted into the slots in the magnet front cover.
  2. Slide the cover towards the right-hand side of the magnet so that the tabs fully engage the slots.
  3. Install eight M10 x 25 Socket Head Cap Screws securing the cover to the magnet.

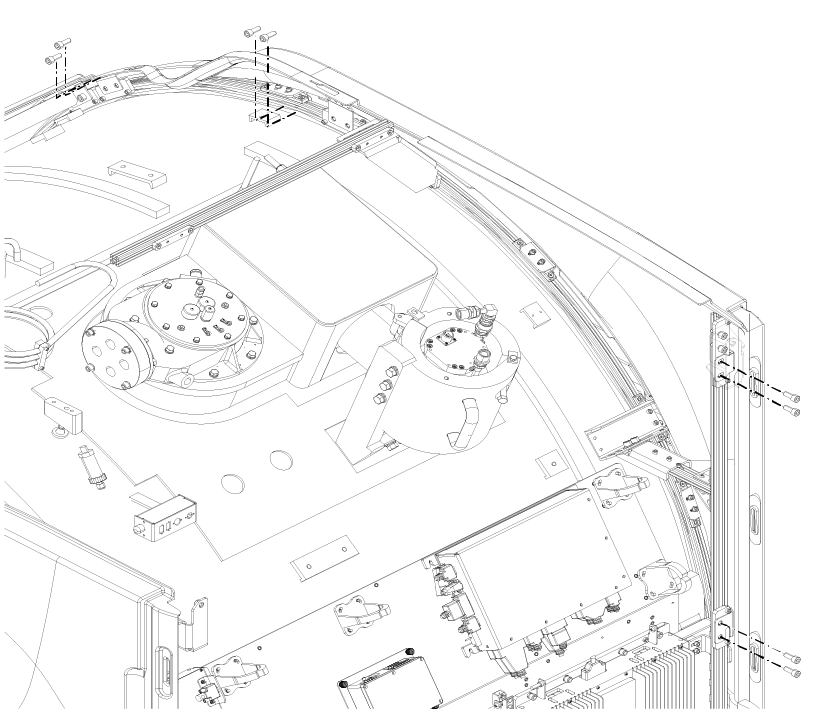

    Figure 1. Left-hand upper front cover screws
    Note: Install the screws securing to the round bracket on top of the magnet before the screws securing to the vertical bracket on the left hand side.
    Note: If required, it is permissible to move the screw plates on the round bracket to install the screws. Do not move the screw plates on the vertical bracket.
