Installing the magnet left-hand rear cover

Installs the rear cover onto the left-hand side of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Position the left-hand rear cover at the rear of the magnet.
  2. Align the three ball and catch strikers on the back of the cover with the ball and catch latches on the magnet.

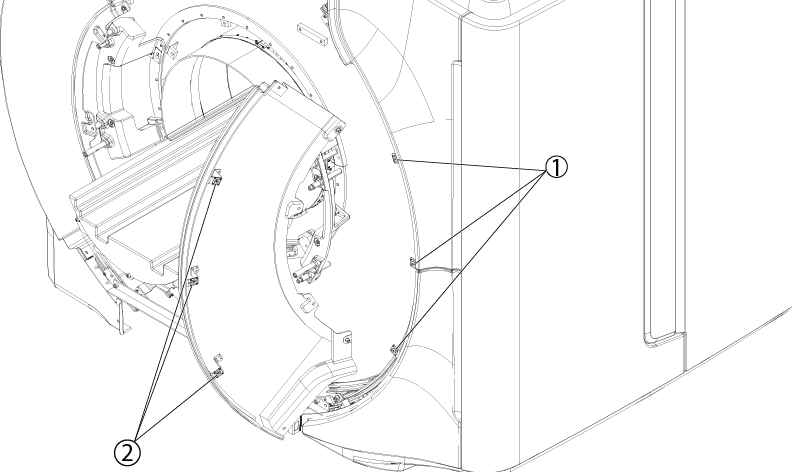

    Figure 1. Left-hand rear cover alignment
    1Ball catch latches
    2Ball catch strikers
  3. Install the left-hand rear cover onto the magnet. Make sure the ball and catch latches retain the cover.
  4. Install four M10 x 25 Socket Head Cap Screws (1000-M10C025-33) securing the cover to the magnet.

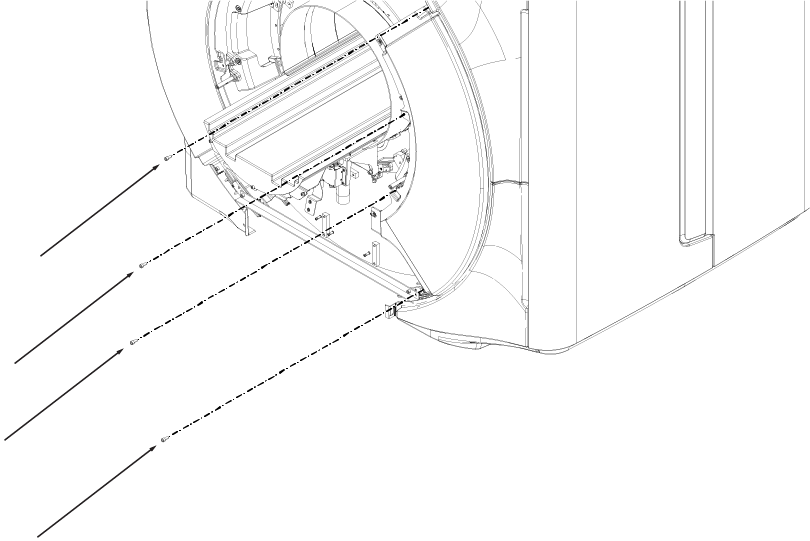

    Figure 2. Left-hand rear cover screws
