• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA30D7D010GYZ
  • Topic ID: id_2002992 Version: 4.5
  • Date: Jul 8, 2021 8:24:23 PM

Installing the magnet left-hand lower rear cover

Installs the lower cover onto the left-hand rear corner of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
Left hand upper rear cover is installed.

Procedure

  1. Install the left-hand lower rear cover onto the magnet.
  2. Install four M10 x 25 Socket Head Cap Screws securing the cover to the magnet.

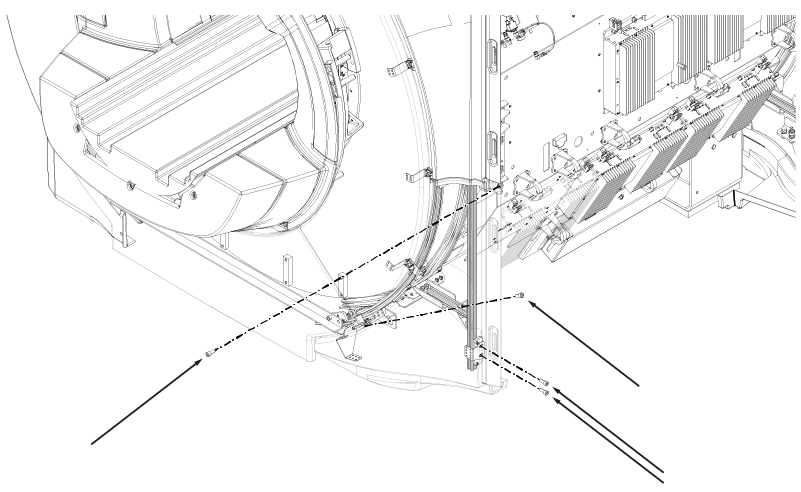

    Figure 1. Left-hand lower rear cover screws
