Installing the magnet left-hand lower front cover

Installs the lower cover onto the left-hand front corner of the magnet.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Required conditions
The magnet front cover is installed.
The left-hand upper front cover is installed.

Procedure

  1. Install the left-hand lower front cover onto the magnet.
  2. Install three M10 x 25 Socket Head Cap Screws securing the cover to the magnet.

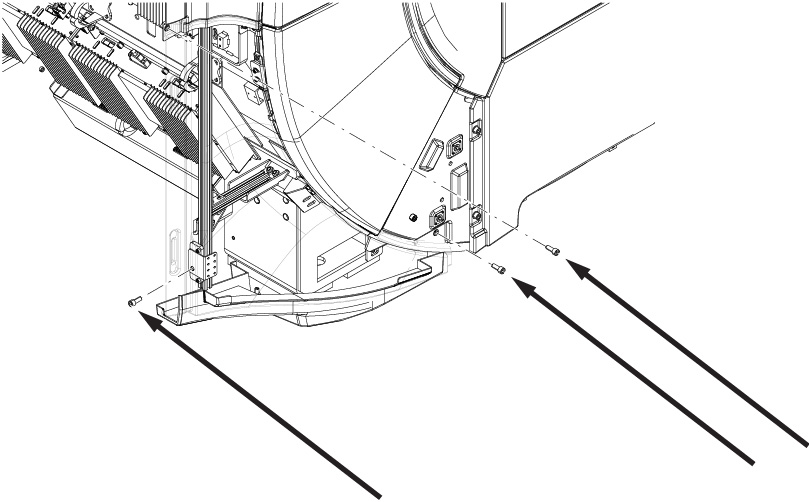

    Figure 1. Left-hand lower front cover screws
