Installing the dockable table front lower bumper

Dockable table front lower bumper installation.

Procedure

  1. Install the front lower bumper.

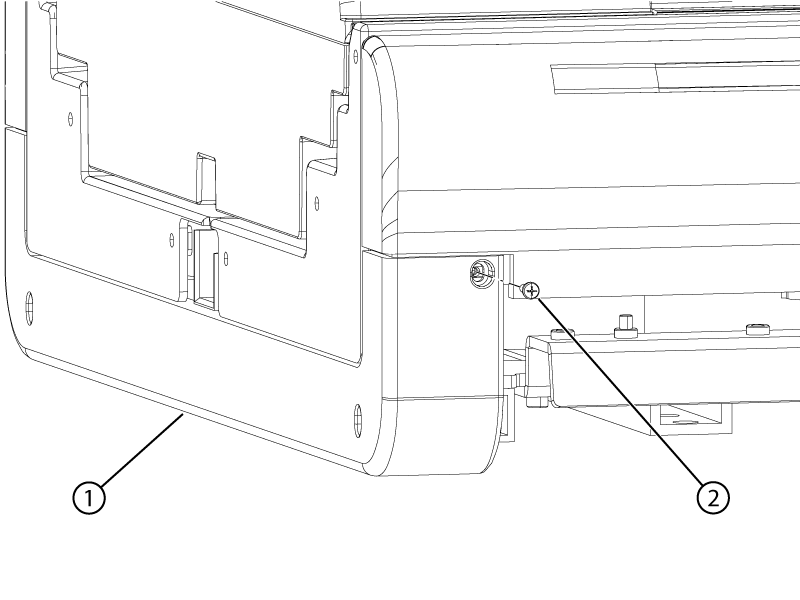

    Figure 1. Front lower bumper screw
    1Front lower bumper
    2Screw
  2. Install the two screws securing the lower front bumper to the table.
