Installs the cable concealment covers onto the concealment cover brackets.
Prerequisites
Table 1. Personnel requirements| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 15 Minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonferrous Metric Ruler | 1 | - | - |
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure

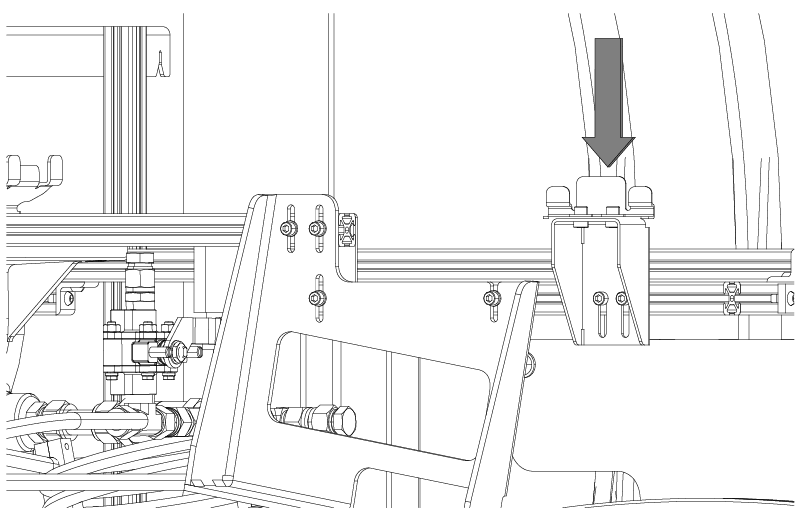

- Push all cover brackets all the way down.
- Starting with the front and back covers, install the concealment cover hooks into the slots on the ceiling brackets.

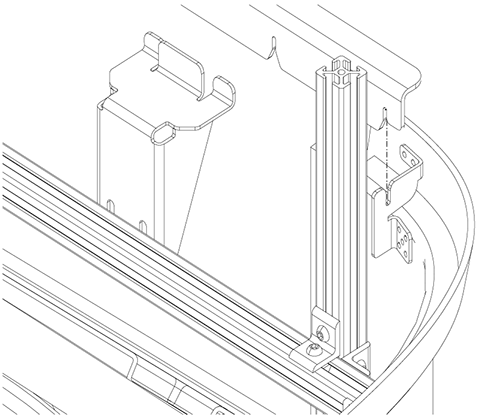

Figure 1. Concealment cover alignment
- Raise the cover brackets tight against the cover.
Note: You may have to adjust the bracket side-to-side on the front rounded cover for proper fit.

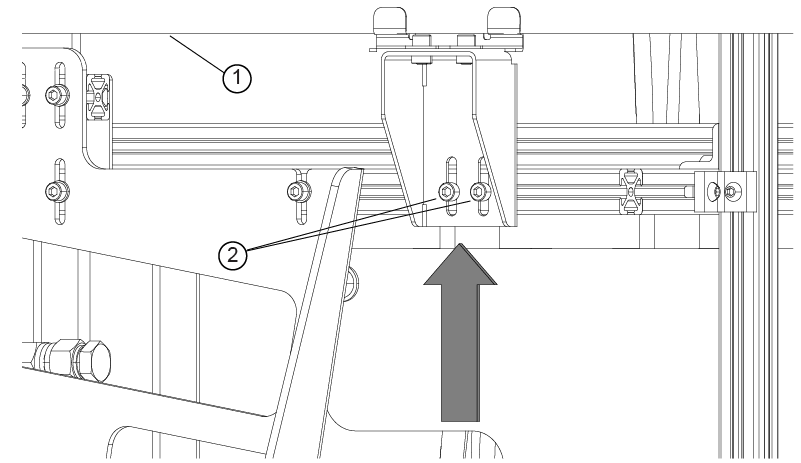

Figure 2. Securing the cover
| 1 | Concealment cover |
| 2 | Screws |
- Adjust the cover brackets along the lower bracket as required to fully support the cover.
- Tighten the screws securing the cover brackets.
