Inspecting the body coil air flow magnet hoses

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Required conditions
Front bridge is removed.

Procedure

  1. Inspect the hose connection at the heat exchanger input.

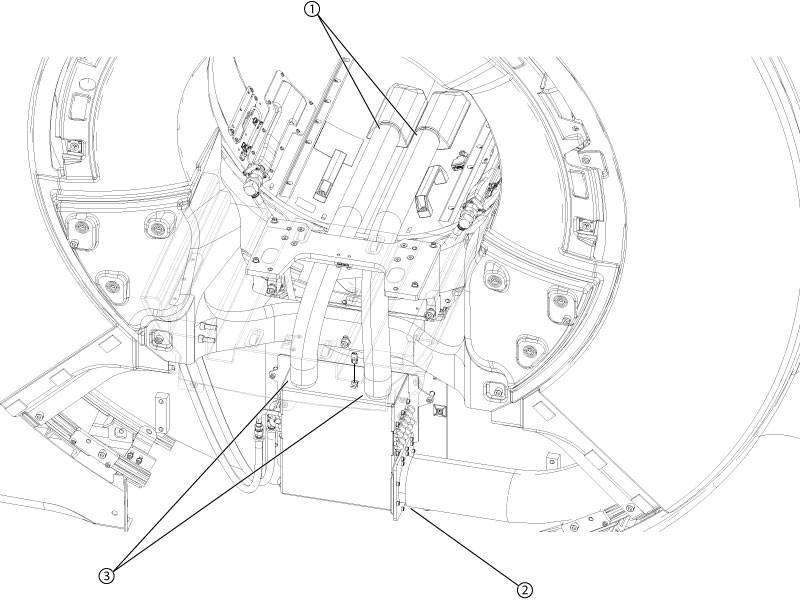

    Figure 1. Body coil air magnet connections
    1RF body coil connections
    2Heat exchanger input
    3Heat exchanger output
  2. Inspect the hose connections at the heat exchanger output.
  3. Inspect the hose connections at the rear of the RF body coil.
