Doing ICW dockable table adjustments

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	2 hours	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
PH Alignment and Magnet Leveling Kit	1	5897979	-
150 mm Plastic Dial Caliper with Metric Readout	1	5916010	-
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Safety
Before working in any GE Healthcare MR suite or performing any GE Healthcare service procedure, you must: Have read and understood all hazard conditions and safety requirements in the latest revision of the GE Healthcare MR Service Safety Manual (5452735). Have successfully completed all relevant GE Healthcare Environmental Health and Safety (EHS) courses (or for non-GE employees, equivalent workplace training courses). Comply with all site-specific training and workplace safety requirements. If you have any safety concerns at any time, do not begin work or immediately stop work and move to a safe location. Immediately contact your supervisor or site safety officer for instructions on how to proceed.

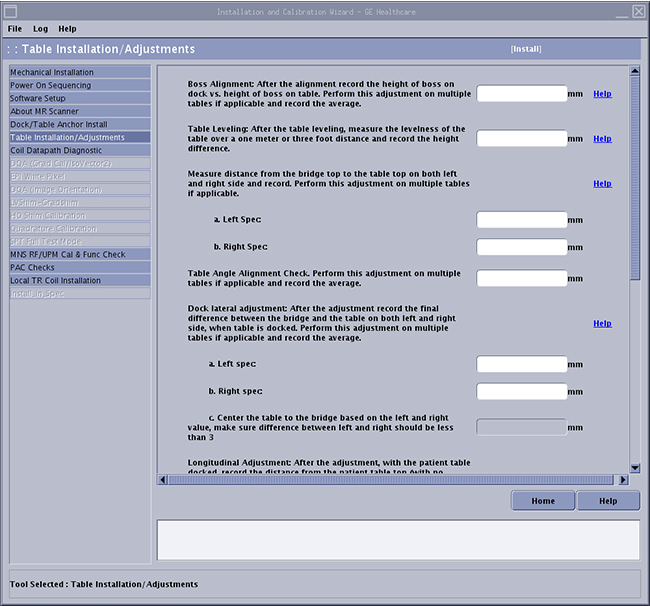

The following installations and adjustments must be completed and checked off when doing the dockable table adjustments in Installation mode.

Note: Download and open the Alignment Data Sheet Macro (DOC2647017) from the online documentation library to use during table adjustments.
