Adjusts the dock left-to-right position relative to the magnet bore to center the dockable table cradle in the bore.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 15 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| 150 mm Plastic Dial Caliper with Metric Readout | 1 | 5916010 | - |
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- Measure the distance from the vertical bearing surface to the laser line at the labeled locations.
Note: Measure approximately 60 mm from the edge of the bridge or table to avoid the profile change.

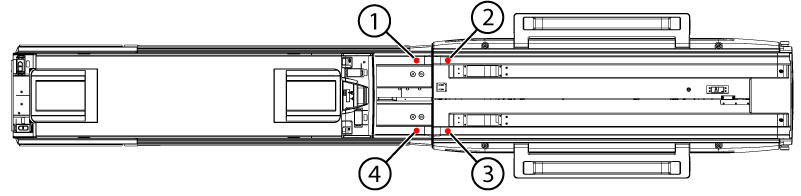

Figure 1. Center measurement points
| 1 | Measurement point G |
| 2 | Measurement point D |
| 3 | Measurement point B |
| 4 | Measurement point E |
Figure 2. Horizontal measurement
| 1 | Laser |
| 2 | Horizontal measurement |
- Enter the measurements in the Table Left/Right - Run 1 table on the Table Left-Right sheet of the Alignment Data Sheet Macro.
- Undock the table and move it far enough that the laser hits the dock.
- Mark a line on the dock cover where either left or right laser sits on the dock.
Note: See the macro spreadsheet for marking illustration.
- Measure the Table Left/Right - Run 1 table Required SHIFT (mm) distance from the laser mark and make a second mark.
Note: Make sure that the second mark is the proper direction from the first mark.
- Loosen the nut securing the dock clamp plate to the floor anchor stud.
Important: The dock clamp plate must be loose prior to making adjustments to avoid damage to the stud.

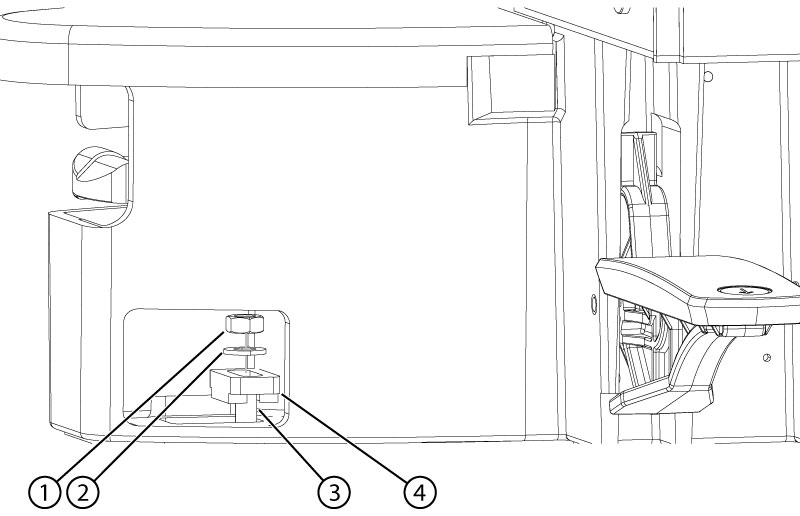

Figure 3. Dock anchor hardware
| 1 | Nut |
| 2 | Washer |
| 3 | Stud |
| 4 | Dock clamp plate |
- Loosen the four left-to-right adjustment securing nuts.

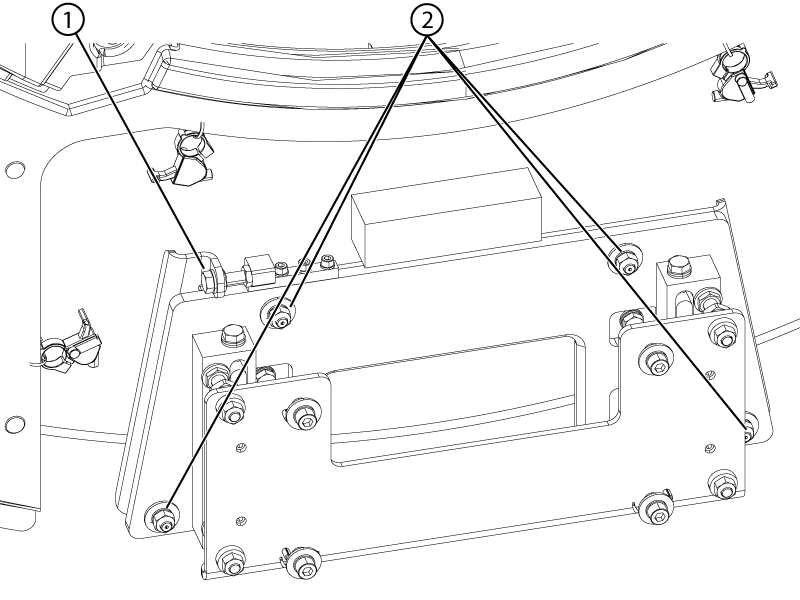

Figure 4. Dock centering hardware
| 1 | Adjustment bolt |
| 2 | Left-to-right adjustment securing nuts |
- Rotate the adjustment bolt until the laser aligns with the second mark.
- Tighten the four left-to-right adjustment securing nuts.
- Tighten the nut securing the dock clamp plate to the floor anchor stud.
- Mechanically dock the table.
- Electrically dock the table.
